product summary
Loading...
company name :
MyBioSource
product type :
antibody
product name :
LAG-3 (Lymphocyte Activation Gene-3, FDC Protein, CD223) (FITC)
catalog :
MBS609777
quantity :
0.1 mg
price :
890 USD
clonality :
monoclonal
host :
mouse
conjugate :
FITC
clone name :
[6D65]
application :
flow cytometry, FACS, other
more info or order :
image 1 :

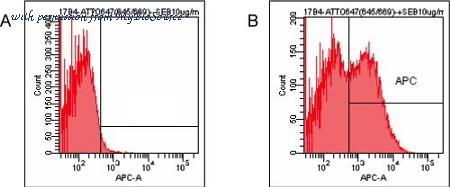

Detection of endogenous human LAG-3 by FACS analysis using MBS609777 Method: Human PBMC were stimulated (B) or not (A) with 1ug/ml of superantigen SEB. After 2 days PBMC were stained with 10ug/ml (1ul/0.5x10e6 cells) of MBS609777 and analyzed by flow cytometry.
image 2 :

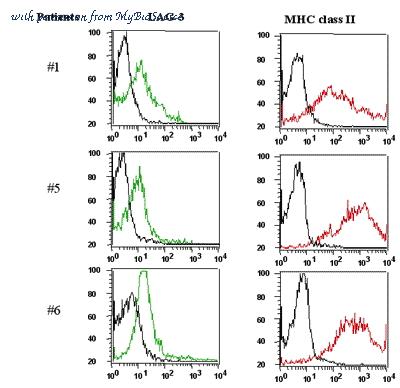

Tumor infiltrating lymphocytes (TILs) express LAG-3. Method: Freshly dissociated single cell suspensions of renal cell carcinoma TILs are incubated with MBS609777 (5ug/ml) and anti-MHC Class II molecules (PE) for 30 min. and washed twice in saline buffer. Additional staining with anti-CD3 allowed a gate analysis of total T cells. The LAG-3 and MHC II profiles of CD3+-gated cells for 3 patients are shown.
image 3 :

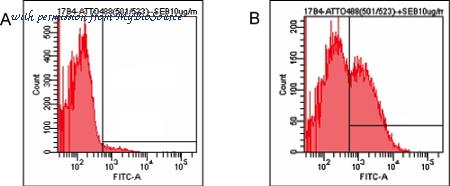

Detection of endogenous human LAG-3 by FACS analysis using MBS609777 . Method: Human PBMC were stimulated (B) or not (A) with 1ug/ml of superantigen SEB. After 2 days, PBMC were stained with 10ug/ml (1ug/0.5x10e6 cells) of MBS609777 and analyzed by flow cytometry.
product information
catalog number :
MBS609777
products type :
Antibody
products full name :
LAG-3 (Lymphocyte Activation Gene-3, FDC Protein, CD223) (FITC)
products short name :
[LAG-3]
products name syn :
[Anti -LAG-3 (Lymphocyte Activation Gene-3, FDC Protein, CD223) (FITC)]
other names :
[LAG-3 protein]
clonality :
Monoclonal
isotype :
IgG1
clone :
[6D65]
host :
Mouse
reactivity :
Human
specificity :
Recognizes the 30aa extra-loop of the first N-terminal D1 domain of human LAG-3.
purity :
Affinity Purified. Purified by Protein A sepharose chromatography. (>95% by SDS-PAGE).
form :
Supplied as a liquid in PBS, 50mM Tris-HCl, 1% BSA, 0.2% sodium azide. Labeled with fluorescein isothiocyanate (FITC).
concentration :
1 mg/ml
storage stability :
May be stored at 4 degree C for short-term only. Aliquot to avoid repeated freezing and thawing. Store at -20 degree C. Aliquots are stable for 12 months. For maximum recovery of product, centrifuge the original vial after thawing and prior to removing the cap. FITC conjugates are sensitive to light.
tested application :
Flow Cytometry (FC/FACS). Other applications not tested.
app notes :
Suitable for use in Flow Cytometry. Optimal dilutions to be determined by the researcher.
image1 heading :
Flow Cytometry (FC/FACS)
image2 heading :
Testing Data
image3 heading :
Flow Cytometry (FC/FACS)
image4 heading :
Testing Data
image4 description :
Expression of LAG-3 on CD4+ and CD8+ subpopulations of tumor infiltrating lymphocytes (TILs). Method: TILs from a dissociated renal cell carcinoma sample, stained with 5ug/ml MBS609777 and FITC-coupled anti-CD4 or -CD8, are analyzed by a two-color FACS analysis. Additional staining with anti-CD3 allowed a gate analysis of total T cells. Values indicate percentages in each quadrant.
image5 heading :
Testing Data
image5 description :
Specific inhibition of staining. Method: MBS609777 (10ug/ml) (is preincubated with a specific peptide epitope (208b) or a control tetanus toxoid (TT) peptide at different molarities prior to staining of TILs. Stainined cells are then analyzed by FACS.
other info1 :
Immunogen: Synthetic peptide corresponding to 30aa, GPPAAAPGHPLAPGPHPAAPSSWGPRPRRY from the first N-terminal D1 domain of human LAG-3 (lymphocyte activation gene-3). Control No.: C15021360. Revision No.: 022114
products categories :
Antibodies; Abs to Growth Factors, Cytokines
products description :
LAG3 (LAG3, LAG-3, lymphocyte-activation gene 3, CD223, lymphocyte-activation protein 3) Lymphocyte-activation protein 3 belongs to Ig superfamily and contains 4 extracellular Ig-like domains. The LAG3 gene contains 8 exons. The sequence data, exon/intron organization, and chromosomal localization all indicate a close relationship of LAG3 to CD4.
ncbi gi num :
4379038
ncbi pathways :
Focal Adhesion Pathway (83067); Focal Adhesion Pathway (478); MAPK Signaling Pathway (83048); MAPK Signaling Pathway (456); Salmonella Infection Pathway (375172); Salmonella Infection Pathway (375149)
size1 :
0.1 mg
price1 :
890 USD
more info or order :
