Recombinant chimeric antigen ChimChagas2 for Trypanosoma cruzi | MyBioSource MBS505072 product information

product summary

company name :

MyBioSource

product type :

protein

product name :

Recombinant chimeric antigen ChimChagas2 for Trypanosoma cruzi

catalog :

MBS505072

quantity :

1 mg

price :

920 USD

more info or order :

MyBioSource product webpage


image 1 :

Figure 1. SDS-PAGE analysis (12.%) of 3 ul of recombinant ChimChagas . 2. Purity is > 98% as determined by gel electrophoresis.Bands which are slightly smaller correspond to this same protein as it is showed in a western blot performed with a his-tag monoclonal antibody

image 2 :

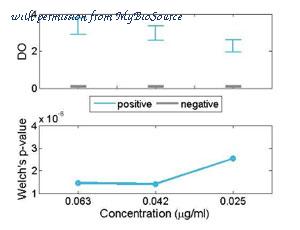

The titer has been suggested in reference to an "in-house" ELISA kit performed .ELISA assays were performed with a serum sample panel of 25 positive-specimen sera and 5 negative specimen sera, validated by chimioluminiscence (Architect, Abbot)and obtained from the Andalusian Public health System Biobank. Each end user should carryout his own titration for his particular application. Figure 2. In this plot, the optical density at 450/620 nm for positive (blue) and negative (gray) IgG sera for Chagas disease are compared for each concentration of the recombinant antigen. An appropriate statistical test of significance for the comparison of means between both groups, the Welch's test, is employed. Eligible concentrations for the use of the antigen should present statistically significant differences between positive and negative sera. This happens when the intervals at the top do not overlap and, equivalently, when the p - value at the bottom is below 0.05. In the present figure, all p-values are below 0.05 and thus the intervals do not overlap. Therefore, any of the showed concentrations can be used to distinguish between positive and negative sera

image 3 :

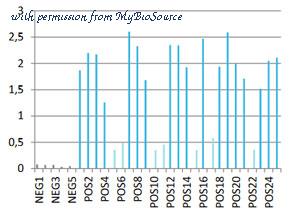

This plot shows an indirect IgG ELISA assay performed with the ChimChagas2 recombinant antigen. the optical density at 450/620 nm for high-positive sera(dark blue), low-positive sera (light blue)and negative sera(gray) are displayed in the graphic

product information

catalog number :

MBS505072

products type :

Recombinant Protein

products full name :

Recombinant chimeric antigen ChimChagas2 for Trypanosoma cruzi

products short name :

[ChimChagas2]

products name syn :

[ChimChagas2; Chimeric antigen; Tp44.5, Recombinant chimeric antigen for Chagas.]

host :

Escherichia coli

specificity :

The protein is immunoreactive against seropositive individuals to Chagas

purity :

>98% in a SDS-PAGE

form :

Dry powder (lyophilized)

concentration :

1.21 mg/mL

storage stability :

Lyophilized protein is shipped with on ice packs. Upon arrival, it should be stored at 20 degree C to -80 degree C. Aliquot after reconstitution in order to avoid repeated freezing and thawing cycles and store at 20 degree C to -80 degree C.

app notes :

ELISA assay. Where this product has not been tested for use in a particular technique, this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates. SUGGESTED TITER BY ELISA: approx. 1:48,000, which corresponds to 0.025 ug/ml of protein concentration in plates,for IgG detection.

image1 heading :

Testing Data (TD)

image2 heading :

Testing Data (TD)

image3 heading :

Testing Data (TD)

other info1 :

Composition: Components : his-ChimChagas2. Composition: Recombinant chimeric antigen with a his-tag in its N-terminus. Buffer: 20 mM phosphate buffer pH 8.5 , 0.15 M NaCl, 5 mM EDTA and 0.1% polyoxyethylene(10) tridecyl ether . QUALITY CONTROL: .1.- PROTEIN CONCENTRATION DETERMINED ESPECTROPHOTOMETRICALLY. DO 280 = 0.147. A 0.1 %(=1 g/l)= 0.121 . CONCENTRATION*: 0.121 mg/ml . *The meassurement of the protein concentration has been performed. with the theoretical extinction coefficient of the recombinant . protein obtained from Gill and vonHippel, 1989

other info2 :

Molecular Weight Note: determined by SDS -PAGE, the protein band is between molecular markers of 66,200- 45,000 Da, while relative molecular mass calculated from amino acid sequence is 46,652.3 Da. ABSENCE OF PRECIPITATION AFTER A FREEZING AND THAWING CYCLE: ok. Observations: In some cases, purified proteins run at a molecular weight which is slightly different to the theoretically calculated molecular weight maybe due to the his-tag presence or sequences of hydrophobic residues, which can produce a delay in SDS-PAGE. Proteins should be aintained frozen at high concentration. The dilution to be erformed for carrying out an LISA assays,should be freshly-made with a small quantity of protein. In order to defrost the protein, maintain the aliquot at 25ºC without shaking to avoid aggregation. Prior making test dilutions and after defrost the protein,is recommended to remove possible protein aggregates by centrifuging the stock solution, avoiding alterations in the immobilization of the biomolecule to the solid surface. Reconstitution: For lyophilized proteins: with 0.04 ml of sterile double-distilled water (lot specific) for a final concentration of 1.59 mg/ml (lot specific). The protein will be at pH 8.

products categories :

Parasites

products description :

The recombinant chimeric antigen for Chagas has been prepared as a chimeric protein formed by several antigenic regions from some antigens from this parasite. Recombinant chimeric antigen for Chagas detection

size1 :

1 mg

price1 :

920 USD

size2 :

5 mg

price2 :

3640

more info or order :

MyBioSource product webpage
