MOUSE ANTI PIG CD335 | MyBioSource MBS224834 product information

product summary

company name :

MyBioSource

product type :

antibody

product name :

MOUSE ANTI PIG CD335

catalog :

MBS224834

quantity :

0.1 mg

price :

320 USD

clonality :

monoclonal

host :

mouse

conjugate :

nonconjugated

clone name :

[VIV-KM1]

application :

immunocytochemistry, flow cytometry, FACS

more info or order :

MyBioSource product webpage


image 1 :

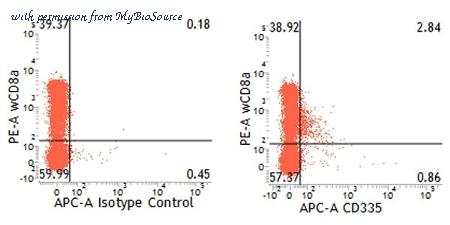

Dual staining of pig peripheral blood lymphocytes with Mouse anti Pig CD335:APC and Mouse anti Pig wCD8a:RPE

image 2 :

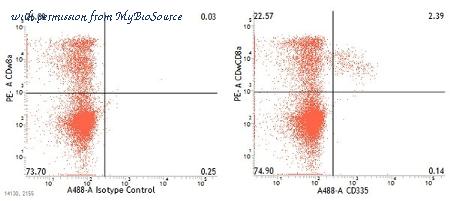

Dual staining of pig peripheral blood lymphocytes with Mouse anti Pig CD335:Alexa Fluor488 and Mouse anti Pig wCD8a:RPE

image 3 :

Published investigator image: Mouse anti Pig CD335 antibody, clone VIV-KM1 used for the evaluation of CD335 expression on porcine cells by flow cytometry.Image caption:Varying expression of NKp46, CD8a, CD16 and CD27 on NK-cell subsets in blood and spleen. (A) Following five-colour staining, PBMC and splenocytes were gated on CD3- cells and further subgated according to their NKp46/CD8a expression pattern in NKp46- and NKp46+ NK cells in blood (upper graph) and NKp46-, NKp46+ and NKp46high NK cells in spleen (lower graph). (B) 14 healthy 6 -7 month old pigs were investigated for NKp46 and CD8a expression levels in the NKp46-defined NK-cell subsets. Box-plots show the mean fluorescence intensity of the two markers. (C) NK-cell subsets defined in (A) were further analysed for their expression of the surface markers CD16 and CD27. Histograms show the expression of the two markers within the respective NKp46-defined subsets (CD8a+NKp46-: blue histograms, CD8a+NKp46+: green histograms, CD8adim/-NKp46high: red histograms) in blood (upper graphs) and spleen (lower graphs) according to the corresponding isotype control (grey histrograms with dotted lines). Box-plots show the mean fluorescence intensity of CD16 and CD27 of the NKp46-defined NK-cell subsets in blood and spleen of 14 healthy 6 -7 month old pigs. (B + C) Significant differences between the subsets in blood or spleen are indicated (* = p < 0.05, ** = p < 0.01, *** = p < 0.001).From: Mair KH, Mllebner A, Essler SE, Duvigneau JC, Storset AK, Saalmller A, Gerner W. Porcine CD8adim/-NKp46high NK cells are in a highly activated state. Vet Res. 2013 Mar 1;44:13.

product information

catalog number :

MBS224834

products type :

Antibody

products full name :

MOUSE ANTI PIG CD335

products short name :

[CD335]

products gene name :

[CD335]

clonality :

Monoclonal

isotype :

IgG1

clone :

[VIV-KM1]

host :

Mouse

reactivity :

Pig

specificity :

Mouse anti Pig CD335 antibody, clone VIV-KM1 recognizes the porcine homologue of human CD335, also known as NKp46 and natural cytotoxicity triggering receptor 1 (NCR1), a member of the natural cytotoxicity receptor (NCR) family. CD335 is a type I transmembrane protein, with two extracellular C2-type immunoglobulin-like domains, which functions as an activating receptor and is involved in the control of viral infection and tumor development.

form :

Purified

concentration :

IgG concentration 1.0 mg/ml

storage stability :

Store at +4 degree C or at -20 degree C if preferred. This product should be stored undiluted. Storage in frost-free freezers is not recommended. Avoid repeated freezing and thawing as this may denature the antibody. Should this product contain a precipitate we recommend microcentrifugation before use. Shelf Life: 18 months from date of despatch.

tested application :

Flow Cytometry (FC/FACS), Immunofluorescence (IF)

app notes :

Flow Cytometry: 1/50; 1/200. Flow Cytometry: Use 10ul of the suggested working dilution to label 10 6 cells in 100ul.

image1 heading :

Testing Data

image2 heading :

Testing Data

image3 heading :

Testing Data

image4 heading :

Testing Data

image4 description :

Published investigator image: Mouse anti Pig CD335 antibody, clone VIV-KM1 used for the evaluation of CD335 expression on porcine cells by flow cytometry.Image caption:Splenic NKp46high NK cells produced the highest levels of IFN-?. (A + B) Intracellular cytokine staining for IFN-? production in NKp46-defined NK cells within PBMC (upper graphs) and splenocytes (lower graphs) by four-colour FCM after 24 h in vitro stimulation with rhIL-2, rpIL-12 and rpIL-18 or medium. CD3- lymphocytes were gated (not shown) and NKp46/CD8a defined total NK cells were further subgated for IFN-? production. IFN-? producing NK cells were gated according to NKp46 expression levels (CD8a+NKp46-: blue, CD8a+NKp46+: green, CD8adim/-NKp46high: red). (A) Numbers indicate the percentage of IFN-?+ NK cells within respective gates. Results are representative for experiments with four different animals. (B) Percentage of IFN-?+ cells (left graph) and mean fluorescence intensity of IFN-?+ cells (right graph) within the different NK-cell subsets in blood and spleen of four animals are shown. (C) Supernatants of cytokine stimulated FACS-sorted CD3-CD8a+NKp46- and CD3-CD8a+NKp46+ NK cells from blood and CD3-CD8a+NKp46-, CD3-CD8a+NKp46+ and CD3-CD8adim/-NKp46high NK cells from spleen were tested for IFN-? production in ELISA following 24 h in vitro stimulation with rhIL-2, rpIL-12 and rpIL-18. Data on the left are from one representative animal and displayed as the mean of duplicates +/- SD. IFN-? production in experiments with four animals analysed is shown on the right. Mean values are represented by a black bar. (B + C) Significant differences between the subsets in blood or spleen are indicated (* = p < 0.05, ** = p < 0.01).From: Mair KH, Mllebner A, Essler SE, Duvigneau JC, Storset AK, Saalmller A, Gerner W. Porcine CD8adim/-NKp46high NK cells are in a highly activated state. Vet Res. 2013 Mar 1;44:13.

image5 heading :

Testing Data

image5 description :

Published investigator image: Mouse anti Pig CD335 antibody, clone VIV-KM1 used for the identification of NK cells in influenza infected pigs by immunofluorescence.Image caption:Counting of NKp46+ cells. Numbers of NKp46+ cells per area were counted in lung tissue sections from control animals and influenza A virus infected animals as described in Material and Methods. Representative picture of area with virus from infected animal. Immunofluorescence staining, 200x.From: Forberg H, Hauge AG, Valheim M, Garcon F, Nunez A, et al. (2014) Early Responses of Natural Killer Cells in Pigs Experimentally Infected with 2009 Pandemic H1N1 Influenza A Virus.PLoS ONE 9(6): e100619.

other info1 :

Preparation: Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant. Preservative Stabilizers: 0.09% Sodium Azide (NaN3). Buffer Solution: Phosphate buffered saline

other info2 :

Immunogen: Fusion protein consisting of the extracellular region of porcine CD335. Fusion Partners: Spleen cells from immunized Balb/c mice were fused with cells of the SP2/0 myeloma cell line.

size1 :

0.1 mg

price1 :

320 USD
