ESD | HUABIO M1510-1 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

ESD

catalog :

M1510-1

quantity :

100μl

price :

360.00 USD

clonality :

monoclonal

host :

mouse

conjugate :

nonconjugated

clone name :

J0-8

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

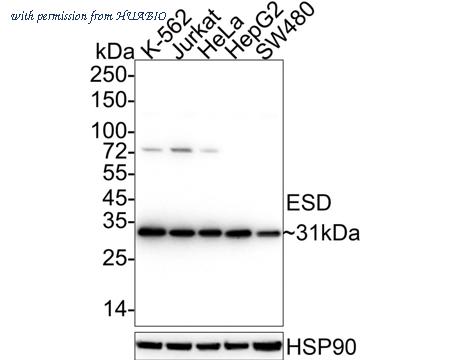

Western blot analysis of ESD on different lysates with Mouse anti-ESD antibody (M1510-1) at 1/1,000 dilution. Lane 1: K-562 cell lysate (20 µg/Lane) Lane 2: Jurkat cell lysate (20 µg/Lane) Lane 3: HeLa cell lysate (20 µg/Lane) Lane 4: HepG2 cell lysate (20 µg/Lane) Lane 5: SW480 cell lysate (20 µg/Lane) Predicted band size: 31 kDa Observed band size: 31 kDa Exposure time: 13 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (M1510-1) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Western blot analysis of ESD on different lysates with Mouse anti-ESD antibody (M1510-1) at 1/2,000 dilution. Lane 1: Human kidney tissue lysate Lane 2: Mouse kidney tissue lysate Lane 3: Mouse colon tissue lysate Lane 4: Mouse stomach tissue lysate Lane 5: Rat kidney tissue lysate Lane 6: Rat colon tissue lysate Lane 7: Rat stomach tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 31 kDa Observed band size: 31 kDa Exposure time: 30 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (M1510-1) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Western blot analysis of ESD on different lysates with Mouse anti-ESD antibody (M1510-1) at 1/20,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-ESD KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 31 kDa Observed band size: 31 kDa Exposure time: 8 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (M1510-1) at 1/20,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature.

product information

SKU :

M1510-1

Target name :

ESD

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human ESD aa 1-182 / 282.

Uniprot id :

P10768>SwissProt: P10768 Human;SwissProt: Q9R0P3 Mouse;SwissProt: B0BNE5 Rat

Host :

Mouse

Clone number :

J0-8

Isotype :

IgG2c

Size :

100μl

List Price :

360.00 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Mouse monoclonal Antibody

Positive control :

K-562 cell lysate, Jurkat cell lysate, HeLa cell lysate, HepG2 cell lysate, SW480 cell lysate, human kidney tissue lysate, mouse kidney tissue lysate, mouse colon tissue lysate, mouse stomach tissue lysate, rat kidney tissue lysate, rat colon tissue lysate, rat stomach tissue lysate, Hela, HepG2, SW480, human tonsil tissue, human kidney tissue, Jurkat.

Molecular wt :

Predicted band size: 31 kDa

Subcellular location :

Cytoplasm. Cytoplasmic vesicle.

Concentration :

2 mg/mL.

Recommended dilutions :

WB:1:1,000-1:20,000 ;IF-Cell:1:100 ;IHC-P:1:100 ;FC:1:50-1:100

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/M1510-1_4.jpg

Pic legend4 :

ICC staining ESD in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with ESD monoclonal antibody at a dilution of 1:100 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Mouse IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/M1510-1_5.jpg

Pic legend5 :

ICC staining ESD in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with ESD monoclonal antibody at a dilution of 1:100 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Mouse IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

Pic img6 :

https://storage.huabio.cn/huabio/productImg/M1510-1_6.jpg

Pic legend6 :

ICC staining ESD in SW480 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with ESD monoclonal antibody at a dilution of 1:100 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Mouse IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

Pic img7 :

https://storage.huabio.cn/huabio/productImg/M1510-1_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-ESD antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (M1510-1) at 1/200 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chrogen. Counter stained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/M1510-1_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-ESD antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (M1510-1) at 1/100 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chrogen. Counter stained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/M1510-1_9.jpg

Pic legend9 :

Flow cytometric analysis of ESD was done on Jurkat cells. The cells were fixed, permeabilized and stained with ESD antibody at 1/100 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). After incubation of the primary antibody on room temperature for an hour, the cells was stained with a Alexa Fluor™ 488-conjugated goat anti-mouse IgG Secondary antibody at 1/500 dilution.
