product summary
Loading...
company name :
HUABIO
product type :
antibody
product name :
DYKDDDDK Tag (FLAG)
catalog :
M1403-2
quantity :
100μl
price :
360.00 USD
clonality :
monoclonal
host :
mouse
conjugate :
nonconjugated
clone name :
A2-A4
application :
western blot, ELISA, immunoprecipitation
more info or order :

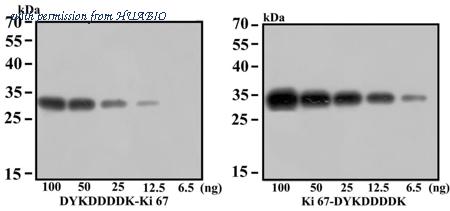

image 1 :
Western blot analysis of DYKDDDDK Tag on Flag-tagged recombinant protein Flag-Ki67 and Ki67-Flag at different cell lysates level.
Predicted band size: 35 kDa;
Observed band size: 35 kDa;
Exposure time: 60 seconds;
SDS-PAGE gel concentration:12%
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (M1403-2, 1/20,000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/200,000 dilution was used for 1 hour at room temperature.

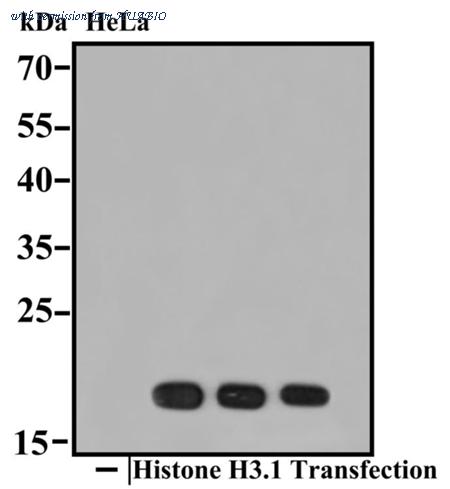

image 2 :
Western blot analysis of DYKDDDDK Tag on Flag-tagged recombinant protein 2xflag-Histone H3.1 at different dilutions of HeLa cells with anti-DYDDDDK antibody (M1403-2).
Lane 1: Non-transfected HeLa cell lysates (1/2000)
Lane 2~4: Transfected HeLa cell lysates (1/2500; 1/5000; 1/10,000)
Predicted band size: 15 kDa;
Observed band size: 18 kDa;
Exposure time: 30 seconds;
SDS-PAGE gel concentration:12%.
Cell lysate at 10ug per lane.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (M1403-2) was used at different dilutions in 5% BSA at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/200,000 dilution was used for 1 hour at room temperature.

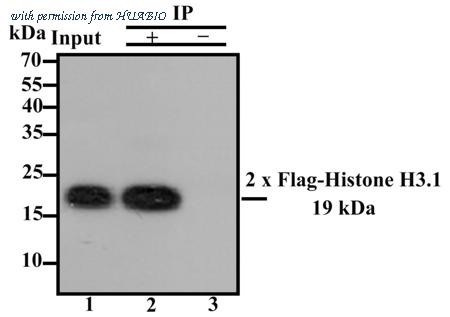

image 3 :
Immunoprecipitation analysis of N-Flag in HeLa cells.
Lane 1: HeLa transfected with DYKDDDDK-tagged human Histone H3.1 expression vector whole cell lysate (input).
Lane 2: M1403-2 IP in HeLa transfected with DDDDK-tagged human Histone H3.1 expression vector whole cell lysate.
Lane 3: Mouse IgG (HA1027) instead of M1403-2 in HeLa transfected with DYKDDDDK-tagged human Histone H3.1 expression vector whole cell lysate.
Predicted band size: 19 kDa;
Observed band size: 19 kDa;
Exposure time: 60 seconds;
SDS-PAGE gel concerntration: 15%.
DYKDDDDK Tag was immunoprecipitated from 0.5 mg Hela transfected with human 2x Flag- Histone H3.1 expression vector whole cell lysate with M1403-2 2 ug/mL. Western blot was performed from the immunoprecipitate using M1403-2 at 1/5,000 dilution for 1 hour at room temperature. The secondary antibody for IP detection reagent, Goat anti-Mouse IgG-HRP antibody (HA1006), was used at 1:100,000 dilution.
product information
SKU :
M1403-2
Target name :
DYKDDDDK Tag (FLAG)
Species reactivity :
Species independent
Applications :
WB,IP,ELISA,IF-Cell
Conjugate :
Non-conjugated
Immunogen :
Synthetic peptide immune sequence is N-DYKDDDDK-C.
Uniprot id :
>
Host :
Mouse
Clone number :
A2-A4
Isotype :
IgG1
Size :
100μl
List Price :
360.00 USD
Storage Buffer :
1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Form :
Liquid
Storage Instruction :
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Purity :
Protein G affinity purified.
Product type :
Mouse monoclonal Antibody
Positive control :
DYKDDDDK Tag recombinant protein, C-terminal FLAG-tagged recombinant protein, N-terminal FLAG-tagged recombinant protein.
Concentration :
2 mg/mL.
Recommended dilutions :
WB: 1:20,000-1:50,000
;IP: 2-5 µg/ml.
;IF-Cell: 1:500-1:10,000
Pic img4 :
https://storage.huabio.cn/huabio/productImg/M1403-2_4.jpg
Pic legend4 :
Immunoprecipitation analysis of C-Flag in HeLa cells.
Lane 1: HeLa transfected with DYKDDDDK-tagged human Siglec15 expression vector whole cell lysate (input).
Lane 2: M1403-2 IP in HeLa transfected with DDDDK-tagged human Siglec15 expression vector whole cell lysate.
Lane 3: Mouse IgG (HA1027) instead of M1403-2 in HeLa transfected with DYKDDDDK-tagged human Siglec15 expression vector whole cell lysate.
DYKDDDDK Tag was immunoprecipitated from 0.5 mg Hela transfected with human Siglec15 expression vector whole cell lysate with M1403-2 2 ug/mL. Western blot was performed from the immunoprecipitate using M1403-2 at 1/2,000 dilution for 1 hour at room temperature. The secondary antibody for IP detection reagent, Goat anti-Mouse IgG-HRP antibody (HA1006), was used at 1:100,000 dilution.
Pic img5 :
https://storage.huabio.cn/huabio/productImg/M1403-2_5.jpg
Pic legend5 :
Immunofluorescent analysis of 2xFlag tagged Histone H3.1 in HeLa cells.
Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa cells labeling DYKDDDDK tag with M1403-2 at 1/500 dilution, followed by iFluor™ 488 Goat anti-mouse IgG antibody (HA1125) at 1/1000 dilution (green).
Pic img6 :
https://storage.huabio.cn/huabio/productImg/M1403-2_6.jpg
Pic legend6 :
Immunocytochemistry analysis of HeLa cells labeling DYKDDDDK Tag (FLAG) with Mouse anti-DYKDDDDK Tag (FLAG) antibody (M1403-2) at 1/10,000 dilution.
HeLa cells, transfected with empty control (top, negative) / Flag-tagged Claudin 18.2 (middle, positive) / Flag-tagged Histone H3.1 (bottom, positive) expression vector, respectively, were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Mouse anti-DYKDDDDK Tag (FLAG) antibody (M1403-2) at 1/10,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
beta Tubulin (ET1602-4, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor™ 594, HA1122) were used as the secondary antibody at 1/1,000 dilution.
