SMC5 | HUABIO HA751551 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

SMC5

catalog :

HA751551

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH15-29

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

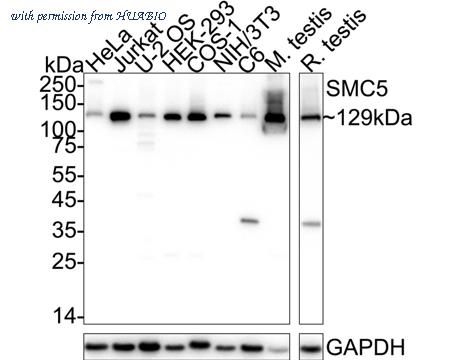

Western blot analysis of SMC5 on different lysates with Rabbit anti-SMC5 antibody (HA751551) at 1/5,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: Jurkat cell lysate (20 µg/Lane) Lane 3: U-2 OS cell lysate (20 µg/Lane) Lane 4: HEK-293 cell lysate (20 µg/Lane) Lane 5: COS-1 cell lysate (20 µg/Lane) Lane 6: NIH/3T3 cell lysate (20 µg/Lane) Lane 7: C6 cell lysate (20 µg/Lane) Lane 8: Mouse testis tissue lysate (40 µg/Lane) Lane 9: Rat testis tissue lysate (40 µg/Lane) Predicted band size: 129 kDa Observed band size: 129 kDa Exposure time: 25 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751551) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunocytochemistry analysis of C6 cells labeling SMC5 with Rabbit anti-SMC5 antibody (HA751551) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-SMC5 antibody (HA751551) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

image 3 :

Immunohistochemical analysis of paraffin-embedded mouse testis tissue with Rabbit anti-SMC5 antibody (HA751551) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751551) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA751551

Target name :

SMC5

Species reactivity :

Human,Mouse,Rat,Monkey

Applications :

WB,IF-Cell,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human SMC5 aa 901-1,101.

Uniprot id :

Q8IY18>SwissProt: Q8IY18 Human;SwissProt: Q8CG46 Mouse;Entrez Gene: 293967 Rat

Host :

Rabbit

Clone number :

PSH15-29

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, Jurkat cell lysate, U-2 OS cell lysate, HEK-293 cell lysate, COS-1 cell lysate, NIH/3T3 cell lysate, C6 cell lysate, Mouse testis tissue lysate, Rat testis tissue lysate, C6, mouse testis tissue, rat testis tissue.

Molecular wt :

Predicted band size: 129 kDa

Subcellular location :

Nucleus, Chromosome, Nucleus, PML body, telomere.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:5,000 ;IF-Cell: 1:100 ;IHC-P: 1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA751551_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded rat testis tissue with Rabbit anti-SMC5 antibody (HA751551) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751551) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
