Pin1 | HUABIO HA751373 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Pin1

catalog :

HA751373

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH10-81

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

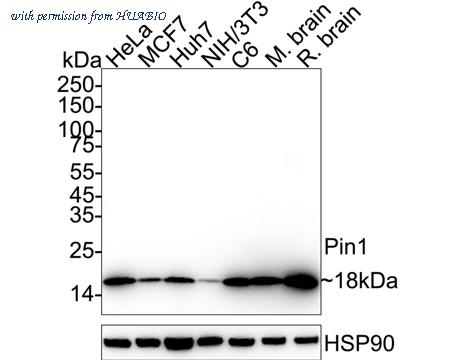

Western blot analysis of Pin1 on different lysates with Rabbit anti-Pin1 antibody (HA751373) at 1/2,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: MCF7 cell lysate (20 µg/Lane) Lane 3: Huh7 cell lysate (20 µg/Lane) Lane 4: NIH/3T3 cell lysate (20 µg/Lane) Lane 5: C6 cell lysate (20 µg/Lane) Lane 6: Mouse brain tissue lysate (40 µg/Lane) Lane 7: Rat brain tissue lysate (40 µg/Lane) Predicted band size: 18 kDa Observed band size: 18 kDa Exposure time: 1 minute; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751373) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunocytochemistry analysis of HeLa cells labeling Pin1 with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

image 3 :

Immunocytochemistry analysis of NIH/3T3 cells labeling Pin1 with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA751373

Target name :

Pin1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,IP

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human Pin1 aa 1-163.

Uniprot id :

Q13526>SwissProt: Q13526 Human;SwissProt: Q9QUR7 Mouse;Entrez Gene: 298696 Rat

Host :

Rabbit

Clone number :

PSH10-81

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, MCF7 cell lysate, Huh7 cell lysate, NIH/3T3 cell lysate, C6 cell lysate, Mouse brain tissue lysate, Rat brain tissue lysate, HeLa, NIH/3T3, C6, mouse liver tissue, mouse pancreas tissue, rat liver tissue, rat pancreas tissue, human pancreas tissue.

Molecular wt :

Predicted band size: 18 kDa

Subcellular location :

Nucleus, Nucleus speckle, Cytoplasm.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IF-Cell: 1:100 ;IHC-P: 1:50-1:1,000 ;IP: 1-2μg/sample

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA751373_4.jpg

Pic legend4 :

Immunocytochemistry analysis of C6 cells labeling Pin1 with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA751373_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751373) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA751373_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751373) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA751373_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751373) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA751373_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded rat pancreas tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751373) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA751373_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded human pancreas tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751373) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA751373_10.jpg

Pic legend10 :

Pin1 was immunoprecipitated from 0.2 mg HeLa cell lysate with HA751373 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA751373 at 1/1,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: HeLa cell lysate (input) Lane 2: HA751373 IP in HeLa cell lysate Lane 3: Rabbit IgG instead of HA751373 in HeLa cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 1 minute 7 seconds; ECL: K1802
