SEC61B | HUABIO HA751295 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

SEC61B

catalog :

HA751295

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH09-48

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

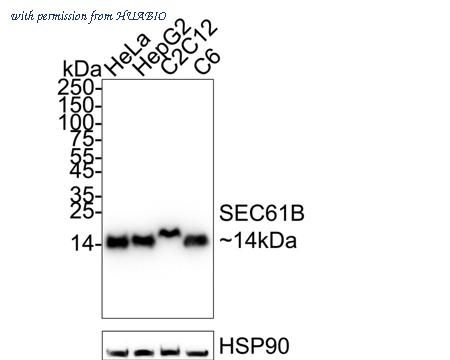

Western blot analysis of SEC61B on different lysates with Rabbit anti-SEC61B antibody (HA751295) at 1/5,000 dilution. Lane 1: HeLa cell lysate Lane 2: HepG2 cell lysate Lane 3: C2C12 cell lysate Lane 4: C6 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 10 kDa Observed band size: 14 kDa Exposure time: 6 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751295) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

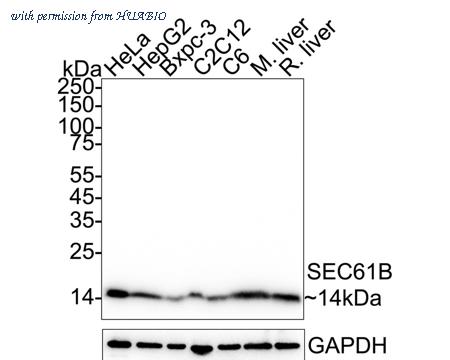

Western blot analysis of SEC61B on different lysates with Rabbit anti-SEC61B antibody (HA751295) at 1/2,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: HepG2 cell lysate (20 µg/Lane) Lane 3: Bxpc-3 cell lysate (20 µg/Lane) Lane 4: C2C12 cell lysate (20 µg/Lane) Lane 5: C6 cell lysate (20 µg/Lane) Lane 6: Mouse liver tissue lysate (40 µg/Lane) Lane 7: Rat liver tissue lysate (40 µg/Lane) Predicted band size: 10 kDa Observed band size: 14 kDa Exposure time: 7 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751295) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunocytochemistry analysis of C2C12 cells labeling SEC61B with Rabbit anti-SEC61B antibody (HA751295) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-SEC61B antibody (HA751295) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA751295

Target name :

SEC61B

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IF-Cell,IP,IF-Tissue

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human SEC61B aa 1-96/96

Uniprot id :

P60468>SwissProt: P60468 Human;SwissProt: Q9CQS8 Mouse;SwissProt: F7F271 Rat

Host :

Rabbit

Clone number :

PSH09-48

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, HepG2 cell lysate, C2C12 cell lysate, C6 cell lysate, Bxpc-3 cell lysate, Mouse liver tissue lysate, Rat liver tissue lysate, C2C12, human liver tissue, mouse liver tissue, rat liver tissue, human brain tissue, human cervical cancer tissue, mouse brain tissue, mouse hippocampus tissue, mouse cerebellum tissue, mouse pancreas tissue, rat brain tissue, rat pancreas tissue.

Molecular wt :

Predicted band size: 10 kDa

Subcellular location :

Endoplasmic reticulum membrane

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000-1:5,000 ;IHC-P: 1:200-1:1,000 ;IF-Cell: 1:100 ;IP: 1-2μg/sample ;IF-Tissue: 1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA751295_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA751295_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA751295_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA751295_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA751295_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded human cervical cancer tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA751295_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA751295_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded mouse hippocampus tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img11 :

https://storage.huabio.cn/huabio/productImg/HA751295_11.jpg

Pic legend11 :

Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img12 :

https://storage.huabio.cn/huabio/productImg/HA751295_12.jpg

Pic legend12 :

Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img13 :

https://storage.huabio.cn/huabio/productImg/HA751295_13.jpg

Pic legend13 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img14 :

https://storage.huabio.cn/huabio/productImg/HA751295_14.jpg

Pic legend14 :

Immunohistochemical analysis of paraffin-embedded rat pancreas tissue with Rabbit anti-SEC61B antibody (HA751295) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751295) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img15 :

https://storage.huabio.cn/huabio/productImg/HA751295_15.jpg

Pic legend15 :

SEC61B was immunoprecipitated from 0.2 mg HeLa cell lysate with HA751295 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA751295 at 1/2,000 dilution. Mouse Anti-Rabbit IgG kappa light chain secondary antibody (M1208-2) at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: HeLa cell lysate (input) Lane 2: HA751295 IP in HeLa cell lysate Lane 3: Rabbit IgG instead of HA751295 in HeLa cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 2 seconds; ECL: K1801

Pic img16 :

https://storage.huabio.cn/huabio/productImg/HA751295_16.jpg

Pic legend16 :

Immunofluorescence analysis of paraffin-embedded mouse liver tissue labeling SEC61B with Rabbit anti-SEC61B antibody (HA751295) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA751295, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Pic img17 :

https://storage.huabio.cn/huabio/productImg/HA751295_17.jpg

Pic legend17 :

Immunofluorescence analysis of paraffin-embedded rat pancreas tissue labeling SEC61B with Rabbit anti-SEC61B antibody (HA751295) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA751295, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).
