Mannose Receptor(CD206) | HUABIO HA751188 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Mannose Receptor(CD206)

catalog :

HA751188

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH07-76

reactivity :

mouse, rat

application :

western blot, immunoprecipitation, immunohistochemistry - paraffin section, immunohistochemistry - frozen section

more info or order :

HUABIO product webpage


image 1 :

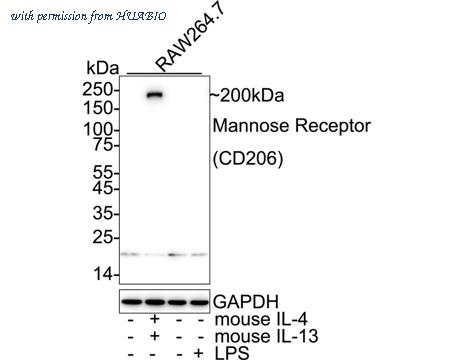

Western blot analysis of Mannose Receptor(CD206) on different lysates with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/2,000 dilution. Lane 1: RAW264.7 cell lysate Lane 2: RAW264.7 treated with 20ng/mL mIL-4 and 10ng/mL mIL-13 for 24 hours cell lysate (Macrophage M2 polarization, positive) Lane 3: RAW264.7 cell lysate Lane 4: RAW264.7 treated with 0.1μg/mL LPS for 6 hours cell lysate (Macrophage M1 polarization, negative) Lysates/proteins at 20 µg/Lane. Predicted band size: 165 kDa Observed band size: 200 kDa Exposure time: 59 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751188) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

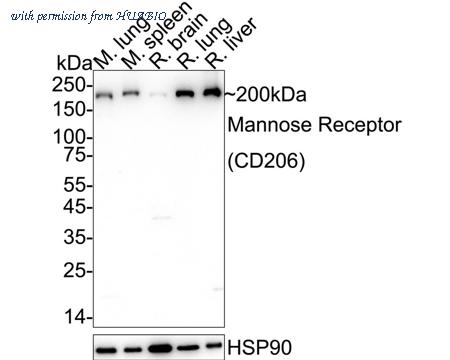

Western blot analysis of Mannose Receptor(CD206) on different lysates with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/1,000 dilution. Lane 1: Mouse lung tissue lysate (20 µg/Lane) Lane 2: Mouse spleen tissue lysate (20 µg/Lane) Lane 3: Rat brain tissue lysate (20 µg/Lane) Lane 4: Rat lung tissue lysate (20 µg/Lane) Lane 5: Rat liver tissue lysate (20 µg/Lane) Predicted band size: 165 kDa Observed band size: 200 kDa Exposure time: 42 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751188) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Application: IHC-Fr Species: Mouse Site: Spleen Sample: Frozen section Antibody concentration: 1/1,000 Antigen retrieval: Not required

product information

SKU :

HA751188

Target name :

Mannose Receptor(CD206)

Species reactivity :

Mouse,Rat

Applications :

WB,IHC-P,IF-Tissue,IHC-Fr,IF-Cell,IP

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within mouse Mannose Receptor(CD206) aa 1-1,409.

Uniprot id :

Q61830>SwissProt: Q61830 Mouse;Entrez Gene: 291327 Rat

Host :

Rabbit

Clone number :

PSH07-76

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

RAW264.7 treated with 20ng/mL mIL-4 and 10ng/mL mIL-13 for 24 hours cell lysate, Mouse lung tissue lysate, Mouse spleen tissue lysate, Rat brain tissue lysate, Rat lung tissue lysate, Rat liver tissue lysate, mouse spleen tissue, mouse liver tissue, rat liver tissue, mouse osteosarcoma tissue.

Molecular wt :

Predicted band size: 165 kDa

Subcellular location :

Endosome membrane, Cell membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000-1:2,000;IHC-P: 1:1,000;IF-Tissue: 1:500;IHC-Fr: 1:500-1:1,000;IF-Cell: 1:50;IP: 1-2μg/sample

Advanced Validation :

Cell treatment (CT)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA751188_4.jpg

Pic legend4 :

Application: IHC-Fr Species: Mouse Site: Liver Sample: Frozen section Antibody concentration: 1/500 Antigen retrieval: Not required

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA751188_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751188) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA751188_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751188) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA751188_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751188) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA751188_8.jpg

Pic legend8 :

Immunocytochemistry analysis of RAW264.7 cells treated with 20ng/mL mIL-4 and 10ng/mL mIL-13 for 24 hours (Macrophage M2 polarization, positive) labeling Mannose Receptor(CD206) with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/50 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA751188_9.jpg

Pic legend9 :

Immunocytochemistry analysis of RAW264.7 cells treated with 0.1μg/mL LPS for 6 hours (Macrophage M1 polarization, negative) labeling Mannose Receptor(CD206) with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Mannose Receptor(CD206) antibody (HA751188) at 1/50 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA751188_10.jpg

Pic legend10 :

Application: IF-tissue Species: Mouse Site: Spleen Sample: Paraffin-embedded section Antibody concentration: 1/500

Pic img11 :

https://storage.huabio.cn/huabio/productImg/HA751188_11.jpg

Pic legend11 :

Application: IF-tissue Species: Mouse Site: Liver Sample: Paraffin-embedded section Antibody concentration: 1/500

Pic img12 :

https://storage.huabio.cn/huabio/productImg/HA751188_12.jpg

Pic legend12 :

Mannose Receptor(CD206) was immunoprecipitated from 0.2 mg rat lung tissue lysate with HA751188 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA751188 at 1/1,000 dilution. Anti-Rabbit IgG for IP Nano-secondary antibody (NBI01H) at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: rat lung tissue lysate (input) Lane 2: HA751188 IP in rat lung tissue lysate Lane 3: Rabbit IgG instead of HA751188 in rat lung tissue lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 1 minute; ECL: K1801
