NDUFV2 | HUABIO HA750839 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

NDUFV2

catalog :

HA750839

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH02-86

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

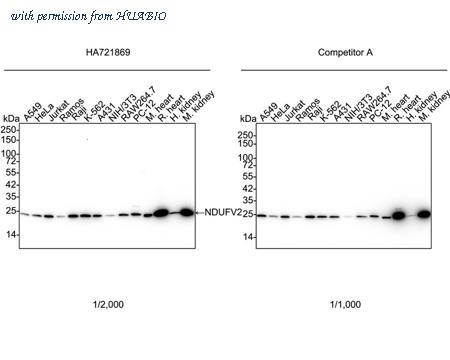

Western blot analysis of NDUFV2 on different lysates with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/1,000 dilution. Lane 1: A549 cell lysate (20 µg/Lane) Lane 2: HeLa cell lysate (20 µg/Lane) Lane 3: Jurkat cell lysate (20 µg/Lane) Lane 4: Ramos cell lysate (20 µg/Lane) Lane 5: Raji cell lysate (20 µg/Lane) Lane 6: K-562 cell lysate (20 µg/Lane) Lane 7: A431 cell lysate (20 µg/Lane) Lane 8: NIH/3T3 cell lysate (20 µg/Lane) Lane 9: RAW264.7 cell lysate (20 µg/Lane) Lane 10: PC-12 cell lysate (20 µg/Lane) Lane 11: Mouse heart tissue lysate (40 µg/Lane) Lane 12: Rat heart tissue lysate (40 µg/Lane) Lane 13: Human kidney tissue lysate (40 µg/Lane) Lane 14: Mouse kidney tissue lysate (40 µg/Lane) Predicted band size: 27 kDa Observed band size: 24 kDa Exposure time: 1 minute 59 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/1,000 dilution were used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

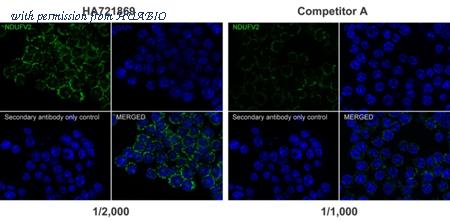

Immunocytochemistry analysis of RAW264.7 cells labeling NDUFV2 with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/1,000 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/1,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

image 3 :

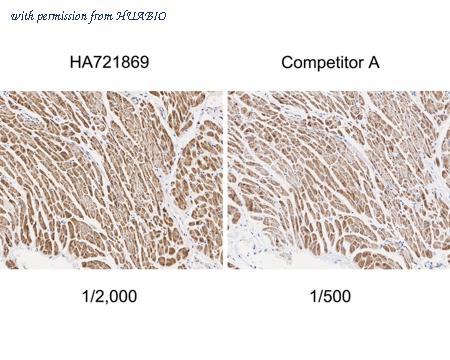

Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA750839

Target name :

NDUFV2

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human NDUFV2 aa 1-249 / 249.

Uniprot id :

P19404>SwissProt: P19404 Human;SwissProt: Q9D6J6 Mouse;SwissProt: P19234 Rat

Host :

Rabbit

Clone number :

PSH02-86

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

A549 cell lysate, HeLa cell lysate, Jurkat cell lysate, Ramos cell lysate, Raji cell lysate, K-562 cell lysate, A431 cell lysate, NIH/3T3 cell lysate, RAW264.7 cell lysate, PC-12 cell lysate, mouse heart tissue lysate, rat heart tissue lysate, human kidney tissue lysate, mouse kidney tissue lysate, RAW264.7, human heart tissue, human kidney tissue, mouse heart tissue, mouse kidney tissue, rat heart tissue, rat kidney tissue.

Molecular wt :

Predicted band size: 27 kDa

Subcellular location :

Mitochondrion inner membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IHC-P: 1:2,000-1:5,000 ;IF-Cell: 1:2,000

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750839_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-NDUFV2 antibody (HA750839) at 1/5,000 dilution and competitor's antibody at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750839) at 1/5,000 dilution and competitor's antibody at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750839_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750839_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750839_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA750839_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750839) at 1/2,000 dilution and competitor's antibody at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA750839_9.jpg

Pic legend9 :

Western blot analysis of NDUFV2 on different lysates with Rabbit anti-NDUFV2 antibody (HA750839) at 1/2,000 dilution. Lane 1: A549-si NT cell lysate Lane 2: A549-si NDUFV2 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 27 kDa Observed band size: 24 kDa Exposure time: 16 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750839) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/100,000 dilution was used for 1 hour at room temperature.
