E2F1 | HUABIO HA750322 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

E2F1

catalog :

HA750322

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JJ092-02

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

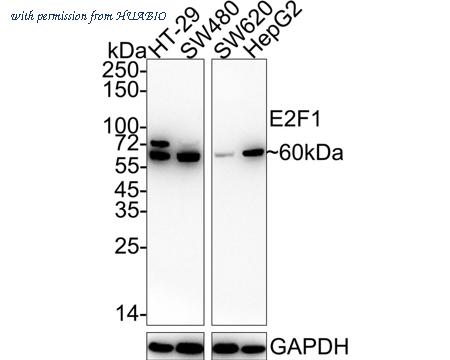

Western blot analysis of E2F1 on different lysates with Rabbit anti-E2F1 antibody (HA750322) at 1/500 dilution. Lane 1: HT-29 cell lysate Lane 2: SW480 cell lysate Lane 3: SW620 cell lysate Lane 4: HepG2 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 47 kDa Observed band size: 60 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750322) at 1/500 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Western blot analysis of E2F1 on different lysates with Rabbit anti-E2F1 antibody (HA750322) at 1/1,000 dilution. Lane 1: NIH/3T3 cell lysate (10 µg/Lane) Lane 2: Rat heart tissue lysate (20 µg/Lane) Predicted band size: 47 kDa Observed band size: 60 kDa Exposure time: 1 minute 2 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750322) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

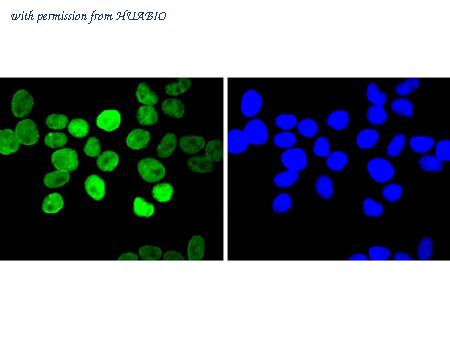

ICC staining of E2F1 in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA750322, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

product information

SKU :

HA750322

Target name :

E2F1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,IP,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human E2F1 aa 371-404 / 437.

Uniprot id :

Q01094>SwissProt: Q01094 Human;SwissProt: Q61501 Mouse;SwissProt: O09139 Rat

Host :

Rabbit

Clone number :

JJ092-02

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HT-29 cell lysate, SW480 cell lysate, SW620 cell lysate, HepG2 cell lysate, NIH/3T3 cell lysate, rat heart tissue lysate, Hela, MCF-7, HepG2, human tonsil tissue, mouse pancreas tissue, rat heart tissue.

Molecular wt :

Predicted band size: 47 kDa

Subcellular location :

Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500-1:10,000 ;IF-Cell: 1:100-1:500 ;IF-Tissue: 1:100-1:500 ;IHC-P: 1:1,000-1:5,000 ;FC: 1:1,000 ;IP: 1-2μg/sample

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750322_4.jpg

Pic legend4 :

ICC staining of E2F1 in MCF-7 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA750322, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750322_5.jpg

Pic legend5 :

ICC staining of E2F1 in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA750322, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750322_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue with Rabbit anti-E2F1 antibody (HA750322) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750322) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750322_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue with Rabbit anti-E2F1 antibody (HA750322) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750322) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA750322_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit anti-E2F1 antibody (HA750322) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750322) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA750322_9.jpg

Pic legend9 :

Flow cytometric analysis of HepG2 cells labeling E2F1. Cells were fixed and permeabilized. Then stained with the primary antibody (HA750322, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA750322_10.jpg

Pic legend10 :

Flow cytometric analysis of NIH/3T3 cells labeling E2F1. Cells were fixed and permeabilized. Then stained with the primary antibody (HA750322, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img11 :

https://storage.huabio.cn/huabio/productImg/HA750322_11.jpg

Pic legend11 :

E2F1 was immunoprecipitated from 0.2 mg HepG2 cell lysate with HA750322 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA750322 at 1/1,000 dilution. Anti-Rabbit IgG for IP Nano-secondary antibody (NBI01H) at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: HepG2 cell lysate (input) Lane 2: HA750322 IP in HepG2 cell lysate Lane 3: Rabbit IgG instead of HA750322 in HepG2 cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 26 seconds; ECL: K1801
