Neuropilin 1 | HUABIO HA750189 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Neuropilin 1

catalog :

HA750189

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

ST05-30

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

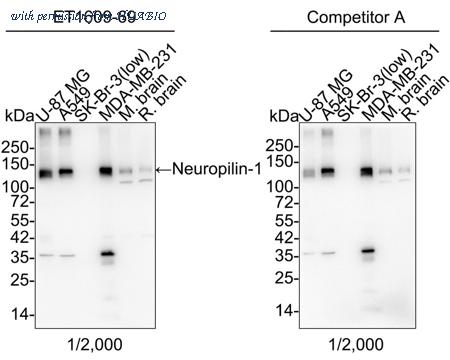

Western blot analysis of Neuropilin 1 on different lysates with Rabbit anti-Neuropilin 1 antibody (HA750189) at 1/2,000 dilution and competitor's antibody at 1/2,000 dilution. Lane 1: U-87 MG cell lysate Lane 2: A549 cell lysate Lane 3: SK-Br-3 cell lysate (low expression) Lane 4: MDA-MB-231 cell lysate Lane 5: Mouse brain tissue lysate Lane 6: Rat brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 103 kDa Observed band size: 130 kDa Exposure time: 35 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750189) at 1/2,000 dilution and competitor's antibody at 1/2,000 dilution were used in 5% BSA at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-Neuropilin 1 antibody (HA750189) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750189) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

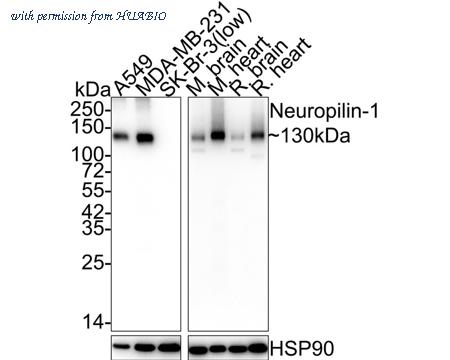

Western blot analysis of Neuropilin 1 on different lysates with Rabbit anti-Neuropilin 1 antibody (HA750189) at 1/5,000 dilution. Lane 1: A549 cell lysate Lane 2: MDA-MB-231 cell lysate Lane 3: SK-Br-3 cell lysate (low expression) Lane 4: Mouse brain tissue lysate Lane 5: Mouse heart tissue lysate Lane 6: Rat brain tissue lysate Lane 7: Rat heart tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 103 kDa Observed band size: 130 kDa Exposure time: Lane 1-3: 1 minute 21 seconds; Lane 4-7: 43 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750189) at 1/5,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:100,000 dilution was used for 1 hour at room temperature.

product information

SKU :

HA750189

Target name :

Neuropilin 1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,IP

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human Neuropilin-1 aa 881-923 / 923.

Uniprot id :

O14786>SwissProt: O14786 Human;SwissProt: P97333 Mouse;SwissProt: Q9QWJ9 Rat

Host :

Rabbit

Clone number :

ST05-30

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

U-87 MG cell lysate, A549 cell lysate, MDA-MB-231 cell lysate, mouse brain tissue lysate, rat brain tissue lysate, human liver tissue, mouse heart tissue lysate, rat heart tissue lysate, SHG-44, MCF-7, HUVEC, human kidney tissue, mouse kidney tissue.

Molecular wt :

Predicted band size: 103 kDa

Subcellular location :

Cell membrane, Secreted.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000-1:5,000 ;IF-Cell: 1:50-1:200 ;IF-Tissue: 1:50-1:200 ;IHC-P: 1:50-1:200 ;IP: Use at an assay dependent concentration.

Advanced Validation :

Relative expression (RE),Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750189_4.jpg

Pic legend4 :

ICC staining of Neuropilin 1 in SHG-44 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA750189, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750189_5.jpg

Pic legend5 :

ICC staining of Neuropilin 1 in MCF-7 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA750189, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750189_6.jpg

Pic legend6 :

ICC staining of Neuropilin 1 in HUVEC cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA750189, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750189_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Neuropilin 1 antibody (HA750189) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750189) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA750189_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-Neuropilin 1 antibody (HA750189) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750189) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA750189_9.jpg

Pic legend9 :

Western blot analysis of Neuropilin 1 on different lysates with Rabbit anti-Neuropilin 1 antibody (HA750189) at 1/5,000 dilution. Lane 1: MDA-MB-231-si NT cell lysate Lane 2: MDA-MB-231-si Neuropilin 1 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 103 kDa Observed band size: 130 kDa Exposure time: 1 minute 2 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750189) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
