PIM1 | HUABIO HA750183 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PIM1

catalog :

HA750183

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

ST0513

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

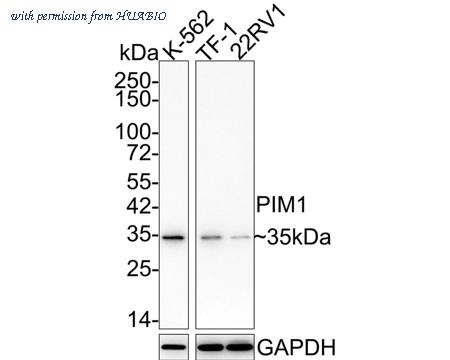

Western blot analysis of PIM1 on different lysates with Rabbit anti-PIM1 antibody (HA750183) at 1/2,000 dilution. Lane 1: K-562 cell lysate Lane 2: TF-1 cell lysate Lane 3: 22RV1 cell lysate Lysates/proteins at 15 µg/Lane. Predicted band size: 36 kDa Observed band size: 35 kDa Exposure time: 1 minute; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750183) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

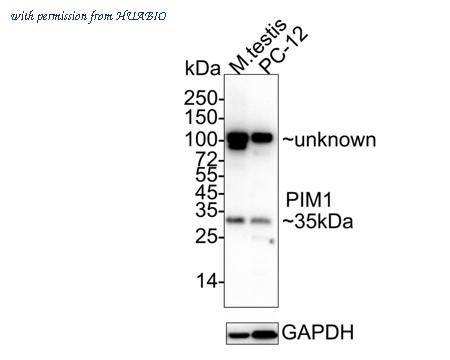

Western blot analysis of PIM1 on different lysates with Rabbit anti-PIM1 antibody (HA750183) at 1/1,000 dilution. Lane 1: Mouse testis tissue lysate（40μg/lane） Lane 2: PC-12 cell lysate (20 µg/Lane) Predicted band size: 35 kDa Observed band size: 35 kDa Exposure time: 43 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750183) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

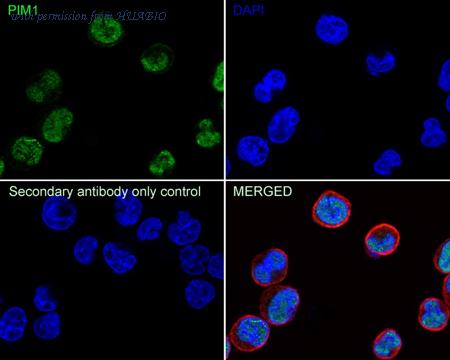

Immunocytochemistry analysis of K-562 cells labeling PIM1 with Rabbit anti-PIM1 antibody (HA750183) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PIM1 antibody (HA750183) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA750183

Target name :

PIM1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human PIM1 aa 20-60.

Uniprot id :

P11309>SwissProt: P11309 Human;SwissProt: P06803 Mouse

Host :

Rabbit

Clone number :

ST0513

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

K-562 cell lysate, TF-1 cell lysate, 22RV1 cell lysate, K-562, BT-20, HepG2, SW480, human tonsil tissue, human colon carcinoma tissue, human spleen tissue, human breast carcinoma tissue, human breast tissue.

Molecular wt :

Predicted band size: 36 kDa

Subcellular location :

Cytoplasm, Nucleus, Cell membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IF-Cell: 1:50-1:200 ;IF-Tissue: 1:50-1:400 ;IHC-P: 1:50-1:2,000

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750183_4.jpg

Pic legend4 :

Immunocytochemistry analysis of BT-20 cells labeling PIM1 with Rabbit anti-PIM1 antibody (HA750183) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-PIM1 antibody (HA750183) at 1/200 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution.Nuclear DNA was labelled in blue with DAPI.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750183_5.jpg

Pic legend5 :

Immunocytochemistry analysis of HepG2 cells labeling PIM1 with Rabbit anti-PIM1 antibody (HA750183) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-PIM1 antibody (HA750183) at 1/200 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750183_6.jpg

Pic legend6 :

Immunocytochemistry analysis of SW480 cells labeling PIM1 with Rabbit anti-PIM1 antibody (HA750183) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-PIM1 antibody (HA750183) at 1/200 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750183_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA750183_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA750183_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded human breast carcinoma with Rabbit anti-PIM1 antibody (HA750183) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA750183_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img11 :

https://storage.huabio.cn/huabio/productImg/HA750183_11.jpg

Pic legend11 :

Immunohistochemical analysis of paraffin-embedded human breast tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img12 :

https://storage.huabio.cn/huabio/productImg/HA750183_12.jpg

Pic legend12 :

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img13 :

https://storage.huabio.cn/huabio/productImg/HA750183_13.jpg

Pic legend13 :

Immunohistochemical analysis of paraffin-embedded mouse colon tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img14 :

https://storage.huabio.cn/huabio/productImg/HA750183_14.jpg

Pic legend14 :

Immunohistochemical analysis of paraffin-embedded rat spleen tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img15 :

https://storage.huabio.cn/huabio/productImg/HA750183_15.jpg

Pic legend15 :

Immunohistochemical analysis of paraffin-embedded rat colon tissue with Rabbit anti-PIM1 antibody (HA750183) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750183) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
