Rab5 | HUABIO HA750167 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Rab5

catalog :

HA750167

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

ST47-04

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

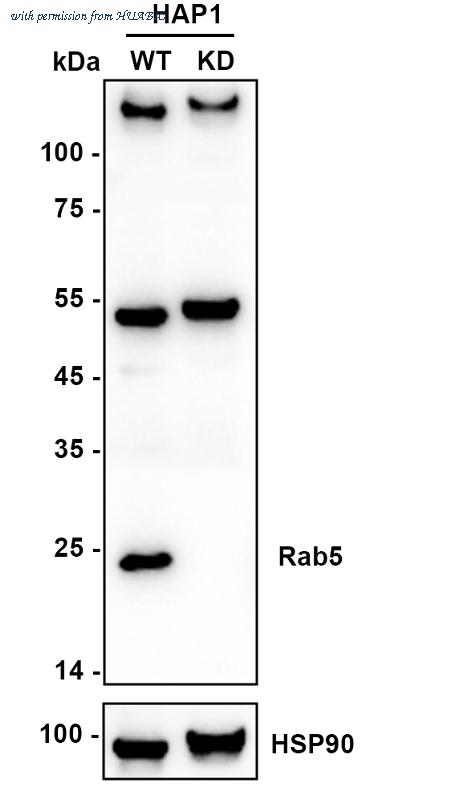

Western blot analysis of Rab5 on different lysates with Rabbit anti-Rab5 antibody (HA750167) at 1/2,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-Rab5 KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 24 kDa Observed band size: 24 kDa Exposure time: 2 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750167) at 1/2,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

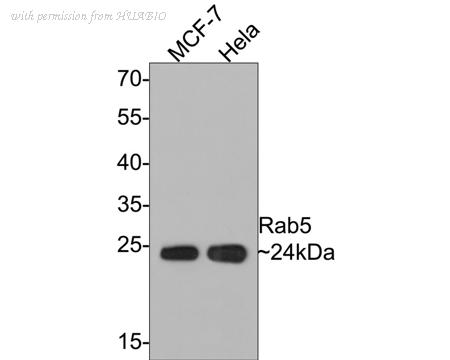

Western blot analysis of Rab5 on different lysates with Rabbit anti-Rab5 antibody (HA750167) at 1/1,000 dilution. Lane 1: MCF-7 cell lysate Lane 2: Hela cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 24 kDa Observed band size: 24 kDa Exposure time: 1 minute; 12% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750167) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

image 3 :

Western blot analysis of Rab5 on different lysates with Rabbit anti-Rab5 antibody (HA750167) at 1/1,000 dilution. Lane 1: Mouse brain tissue lysate Lane 2: Rat brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 24 kDa Observed band size: 24 kDa Exposure time: 2 minutes; 12% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750167) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

product information

SKU :

HA750167

Target name :

Rab5

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human Rab5 aa 166-215 / 215.

Uniprot id :

P20339>SwissProt: P20339 Human;SwissProt: Q9CQD1 Mouse;SwissProt: M0RC99 Rat

Host :

Rabbit

Clone number :

ST47-04

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

MCF-7 cell lysate, Hela cell lysate, Mouse brain tissue lysate, Rat brain tissue lysate, Neuro-2a cell lysate, PC-12 cell lysate, human colon cancer tissue, human prostate cancer tissue, PC-12.

Molecular wt :

Predicted band size: 24 kDa

Subcellular location :

Cell membrane, Cytoplasm, Cell projection, Membrane, Endosome.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500-1:2,000 ;IHC-P: 1:50-1:200 ;IF-Cell: 1:100

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750167_4.jpg

Pic legend4 :

Western blot analysis of Rab5 on different lysates with Rabbit anti-Rab5 antibody (HA750167) at 1/1,000 dilution. Lane 1: Neuro-2a cell lysate Lane 2: PC-12 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 24 kDa Observed band size: 24 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750167) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750167_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human colon cancer tissue with Rabbit anti-Rab5 antibody (HA750167) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750167) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750167_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human prostate cancer tissue with Rabbit anti-Rab5 antibody (HA750167) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750167) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750167_7.jpg

Pic legend7 :

Immunocytochemistry analysis of PC-12 cells labeling Rab5 with Rabbit anti-Rab5 antibody (HA750167) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Rab5 antibody (HA750167) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
