Smad2 | HUABIO HA750073 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Smad2

catalog :

HA750073

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SP06-05

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

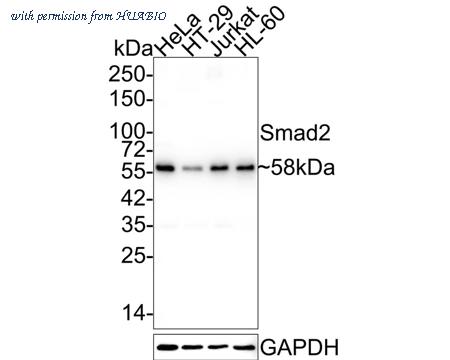

Western blot analysis of Smad2 on different lysates with Rabbit anti-Smad2 antibody (HA750073) at 1/5,000 dilution. Lane 1: HeLa cell lysate Lane 2: HT-29 cell lysate Lane 3: Jurkat cell lysate Lane 4: HL-60 cell lysate Lysates/proteins at 15 µg/Lane. Predicted band size: 52 kDa Observed band size: 58 kDa Exposure time: 1 minute 20 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750073) at 1/5,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:50,000 dilution was used for 1 hour at room temperature.

image 2 :

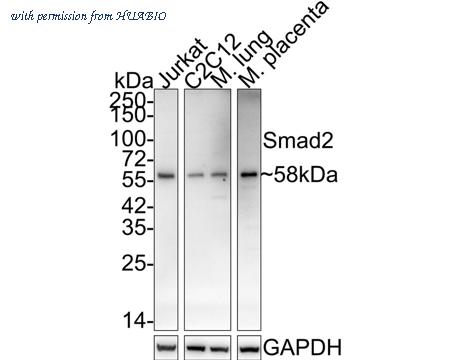

Western blot analysis of Smad2 on different lysates with Rabbit anti-Smad2 antibody (HA750073) at 1/1,000 dilution. Lane 1: Jurkat cell lysate (15 µg/Lane) Lane 2: C2C12 cell lysate (15 µg/Lane) Lane 3: Mouse lung tissue lysate (30 µg/Lane) Lane 4: Mouse placenta tissue lysate (30 µg/Lane) Predicted band size: 52 kDa Observed band size: 58 kDa Exposure time: 1 minute 21 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750073) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Western blot analysis of Smad2 with anti-Smad2 antibody (HA750073) at 1:500 dilution. Lane 1: Wild-type HaCaT whole cell lysate (15 µg). Lane 2: Smad2 knockout HaCaT whole cell lysate (15 µg). HA750073 was shown to specifically react with Smad2 in wild-type HaCaT cells. NO band was observed when Smad2 knockout sample was tested. Wild-type and Smad2 knockout samples were subjected to SDS-PAGE. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM in TBST for 1 hour at room temperature. The primary antibody (HA750073, 1:500) was used in 5% BSA at room temperature for 2 hours. Goat anti-Rabbit IgG-HRP antibody at 1:10,000 dilution was used for 1 hour at room temperature.

product information

SKU :

HA750073

Target name :

Smad2

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,IP,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human Smad2 aa 220-270.

Uniprot id :

Q15796>SwissProt: Q15796 Human;SwissProt: Q62432 Mouse;SwissProt: O70436 Rat

Host :

Rabbit

Clone number :

SP06-05

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, HT-29 cell lysate, Jurkat cell lysate, HL-60 cell lysate, C2C12 cell lysate, mouse lung tissue lysate, mouse placenta tissue lysate, human cerebellum tissue, mouse cerebellum tissue, rat cerebellum tissue, HepG2, NIH/3T3.

Molecular wt :

Predicted band size: 52 kDa

Subcellular location :

Cytoplasm, Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000-1:5,000 ;IF-Cell: 1:100 ;IHC-P: 1:200-1:1,000 ;FC: 1:1,000 ;IP: Use at an assay dependent concentration.

Advanced Validation :

Knockout (KO)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750073_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human cerebellum tissue with Rabbit anti-Smad2 antibody (HA750073) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750073) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750073_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rabbit anti-Smad2 antibody (HA750073) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750073) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750073_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue with Rabbit anti-Smad2 antibody (HA750073) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750073) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750073_7.jpg

Pic legend7 :

Immunocytochemistry analysis of HepG2 cells labeling Smad2 with Rabbit anti-Smad2 antibody (HA750073) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Smad2 antibody (HA750073) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA750073_8.jpg

Pic legend8 :

Immunocytochemistry analysis of NIH/3T3 cells labeling Smad2 with Rabbit anti-Smad2 antibody (HA750073) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Smad2 antibody (HA750073) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA750073_9.jpg

Pic legend9 :

Flow cytometric analysis of HepG2 cells labeling Smad2. Cells were fixed and permeabilized. Then stained with the primary antibody (HA750073, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA750073_10.jpg

Pic legend10 :

Flow cytometric analysis of NIH/3T3 cells labeling Smad2. Cells were fixed and permeabilized. Then stained with the primary antibody (HA750073, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
