ARPC5 / p16 ARC | HUABIO HA750055 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

ARPC5 / p16 ARC

catalog :

HA750055

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SR34-02

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

Western blot analysis of ARPC5 / p16 ARC on different lysates with Rabbit anti-ARPC5 / p16 ARC antibody (HA750055) at 1/5,000 dilution. Lane 1: HeLa cell lysate (15 µg/Lane) Lane 2: MCF7 cell lysate (15 µg/Lane) Lane 3: HepG2 cell lysate (15 µg/Lane) Lane 4: Human brain tissue lysate (20 µg/Lane) Lane 5: Mouse brain tissue lysate (20 µg/Lane) Lane 6: Rat brain tissue lysate (20 µg/Lane) Predicted band size: 16 kDa Observed band size: 16 kDa Exposure time: 3 minutes; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750055) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

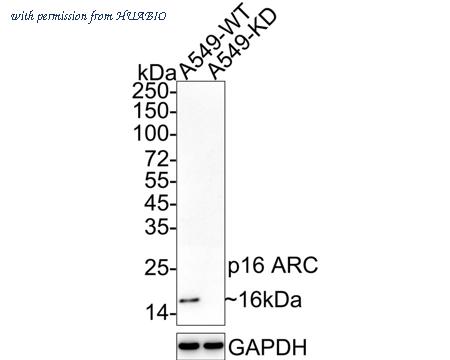

Western blot analysis of ARPC5 / p16 ARC on different lysates with Rabbit anti-ARPC5 / p16 ARC antibody (HA750055) at 1/1,000 dilution. Lane 1: A549-WT cell lysate Lane 2: A549-KD ARPC5 / p16 ARC cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 16 kDa Observed band size: 16 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750055) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

ICC staining of ARPC5 / p16 ARC in N2A cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (HA750055, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

product information

SKU :

HA750055

Target name :

ARPC5 / p16 ARC

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,FC,IP

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human p16 ARC aa 1-50 / 151.

Uniprot id :

O15511>SwissProt: O15511 Human;SwissProt: Q9CPW4 Mouse;SwissProt: Q4KLF8 Rat

Host :

Rabbit

Clone number :

SR34-02

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, MCF7 cell lysate, HepG2 cell lysate, human brain tissue lysate, mouse brain tissue lysate, rat brain tissue lysate, N2A, human spleen tissue, mouse lung tissue, mouse spleen tissue, human placenta tissue, SH-SY5Y.

Molecular wt :

Predicted band size: 16 kDa

Subcellular location :

Cytoplasm, Cytoskeleton, Nucleus, Cell projection.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:5,000 ;IF-Cell: 1:50 ;IF-Tissue: 1:50 ;IHC-P: 1:50-1:200 ;FC: 1:50-1:100 ;IP: Use at an assay dependent concentration.

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750055_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-ARPC5 / p16 ARC antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750055, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750055_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse lung tissue using anti-ARPC5 / p16 ARC antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750055, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750055_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue using anti-ARPC5 / p16 ARC antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750055, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750055_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-ARPC5 / p16 ARC antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750055, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA750055_8.jpg

Pic legend8 :

Flow cytometric analysis of ARPC5 / p16 ARC was done on SH-SY5Y cells. The cells were fixed, permeabilized and stained with the primary antibody (HA750055, 1/50) (blue). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; red).

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA750055_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded rat lung tissue with Rabbit anti-ARPC5 / p16 ARC antibody (HA750055) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750055) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA750055_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded rat spleen tissue with Rabbit anti-ARPC5 / p16 ARC antibody (HA750055) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750055) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
