Integrin beta 1 | HUABIO HA750008 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Integrin beta 1

catalog :

HA750008

quantity :

100μl

price :

649.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SA40-08

reactivity :

human, mouse, rat, zebrafish

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

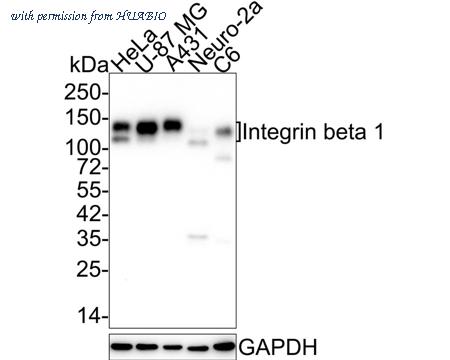

Western blot analysis of Integrin beta 1 on different lysates with Rabbit anti-Integrin beta 1 antibody (HA750008) at 1/2,000 dilution. Lane 1: HeLa cell lysate Lane 2: U-87 MG cell lysate Lane 3: A431 cell lysate Lane 4: Neuro-2a cell lysate Lane 5: C6 cell lysate Lysates/proteins at 15 µg/Lane. Predicted band size: 88 kDa Observed band size: 120-140 kDa Exposure time: 1 minutes 22 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750008) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Western blot analysis of Integrin beta 1 on different lysates with Rabbit anti-Integrin beta 1 antibody (HA750008) at 1/5,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-Integrin beta 1 KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 88 kDa Observed band size: 120-140 kDa Exposure time: 18 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750008) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded human liver carcinoma tissue with Rabbit anti-Integrin beta 1 antibody (HA750008) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750008) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA750008

Target name :

Integrin beta 1

Species reactivity :

Human,Mouse,Rat,Zebrafish

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human Integrin beta 1 aa 1-240 / 798.

Uniprot id :

P05556>SwissProt: P05556 Human;SwissProt: P09055 Mouse;SwissProt: P49134 Rat

Host :

Rabbit

Clone number :

SA40-08

Isotype :

IgG

Size :

100μl

List Price :

649.00 USD

Storage Buffer :

PBS (pH7.4).

Form :

Liquid

Storage Instruction :

Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, U-87 MG cell lysate, A431 cell lysate, Neuro-2a cell lysate, C6 cell lysate, human liver carcinoma tissue, human colon carcinoma tissue, mouse stomach tissue, mouse kidney tissue, human liver tissue.

Molecular wt :

Predicted band size: 88 kDa

Subcellular location :

Cell Membrane, Cell projection, Cleavage furrow

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IHC-P: 1:200-1:500

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA750008_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue with Rabbit anti-Integrin beta 1 antibody (HA750008) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750008) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA750008_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse stomach tissue using anti-Integrin beta 1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750008, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA750008_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-Integrin beta 1 antibody (HA750008) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750008) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA750008_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-Integrin beta 1 antibody (HA750008) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750008) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
