NAK / TBK1 | HUABIO HA723365 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

NAK / TBK1

catalog :

HA723365

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH11-69

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry

more info or order :

HUABIO product webpage


image 1 :

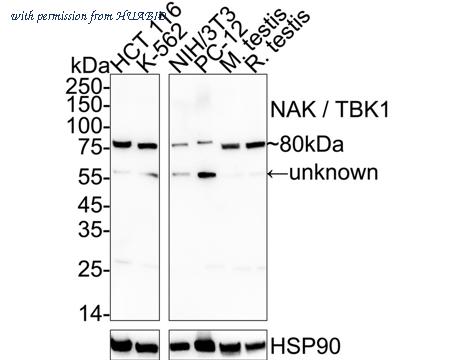

Western blot analysis of NAK / TBK1 on different lysates with Rabbit anti-NAK / TBK1 antibody (HA723365) at 1/10,000 dilution. Lane 1: HCT 106 cell lysate (20 µg/Lane) Lane 2: K-562 cell lysate (20 µg/Lane) Lane 3: NIH/3T3 cell lysate (20 µg/Lane) Lane 4: PC-12 cell lysate (20 µg/Lane) Lane 5: Mouse testis tissue lysate (40 µg/Lane) Lane 6: Rat testis tissue lysate (40 µg/Lane) Predicted band size: 84 kDa Observed band size: 80 kDa Exposure time: 2 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723365) at 1/10,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

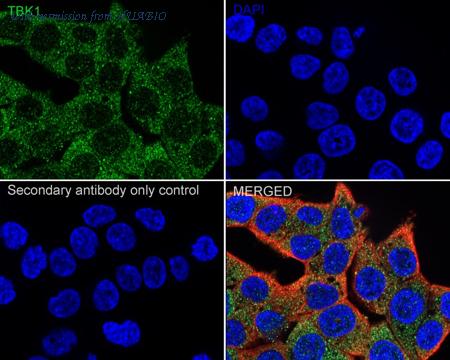

Immunocytochemistry analysis of HCT 116 cells labeling NAK / TBK1 with Rabbit anti-NAK / TBK1 antibody (HA723365) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-NAK / TBK1 antibody (HA723365) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

image 3 :

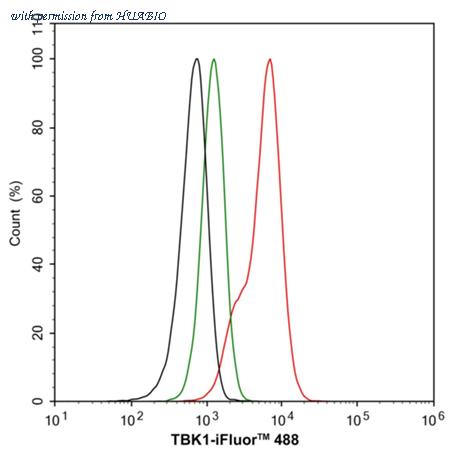

Flow cytometric analysis of HCT 116 cells labeling NAK / TBK1. Cells were fixed and permeabilized. Then stained with the primary antibody (HA723365, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

product information

SKU :

HA723365

Target name :

NAK / TBK1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,FC,IP

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human TBK1 aa 451-729.

Uniprot id :

Q9UHD2>SwissProt: Q9UHD2 Human;SwissProt: Q9WUN2 Mouse;Entrez Gene: 299827 Rat

Host :

Rabbit

Clone number :

PSH11-69

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HCT 106 cell lysate, K-562 cell lysate, NIH/3T3 cell lysate, PC-12 cell lysate, Mouse testis tissue lysate, Rat testis tissue lysate, HCT 116.

Molecular wt :

Predicted band size: 84 kDa

Subcellular location :

Cytoplasm

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:10,000 ;IF-Cell: 1:250 ;FC: 1:1,000 ;IP: 1-2μg/sample

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA723365_4.jpg

Pic legend4 :

NAK / TBK1 was immunoprecipitated from 0.2 mg HCT 116 cell lysate with HA723365 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA723365 at 1/1,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: HCT 116 cell lysate (input) Lane 2: HA723365 IP in HCT 116 cell lysate Lane 3: Rabbit IgG instead of HA723365 in HCT 116 cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 59 seconds; ECL: K1801

more info or order :

HUABIO product webpage
