PHOS / PDC | HUABIO HA723116 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PHOS / PDC

catalog :

HA723116

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH09-54

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section, immunohistochemistry - frozen section

more info or order :

HUABIO product webpage


image 1 :

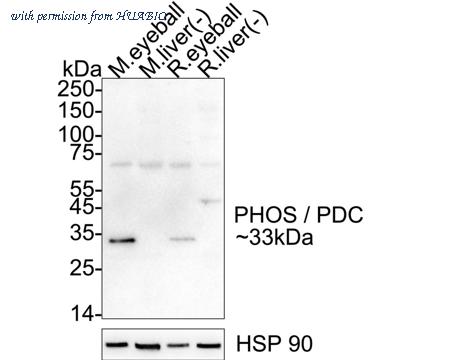

Western blot analysis of PHOS / PDC on different lysates with Rabbit anti-PHOS / PDC antibody (HA723116) at 1/2,000 dilution. Lane 1: mouse eyeball tissue lysate (40 µg/Lane) Lane 2: mouse liver tissue lysate (negative) (40 µg/Lane) Lane 3: rat eyeball tissue lysate (40 µg/Lane) Lane 4: rat liver tissue lysate (negative) (40 µg/Lane) Predicted band size: 28 kDa Observed band size: 33 kDa Exposure time: 3 minutes ; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723116) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded mouse eyeball tissue with Rabbit anti-PHOS / PDC antibody (HA723116) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723116) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded rat eyeball tissue with Rabbit anti-PHOS / PDC antibody (HA723116) at 1/8,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723116) at 1/8,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA723116

Target name :

PHOS / PDC

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IHC-Fr,IF-Tissue

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human PHOS/PDC aa 36-69/246

Uniprot id :

P20941>SwissProt: P20941 Human;SwissProt: Q9QW08 Mouse;SwissProt: P20942 Rat

Host :

Rabbit

Clone number :

PSH09-54

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

Mouse eyeball tissue lysate, rat eyeball tissue lysate, mouse eyeball tissue, rat eyeball tissue.

Molecular wt :

Predicted band size: 28 kDa

Subcellular location :

Cytoplasm, cytosol, Nucleus, Cell projection, cilium, photoreceptor outer segment, Photoreceptor inner segment,

Concentration :

1 mg/mL.

Recommended dilutions :

WB:1:2,000 ;IHC-P:1:1,000-1:8,000 ;IHC-Fr:1:500 ;IF-Tissue:1:200-1:2,000

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA723116_4.jpg

Pic legend4 :

Immunofluorescence analysis of frozen mouse eyeball tissue with Rabbit anti-PHOS / PDC antibody (HA723116) at 1/500 dilution. The section was not undergone antigen retrieval. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA723116, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

more info or order :

HUABIO product webpage
