Integrin beta 3 | HUABIO HA723085 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Integrin beta 3

catalog :

HA723085

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH09-27

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

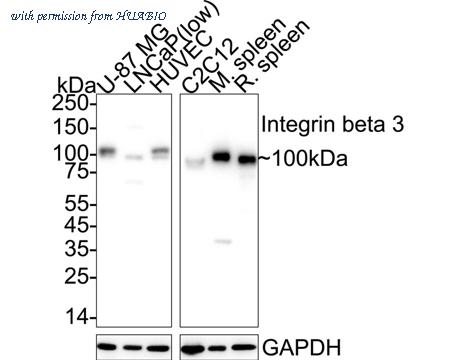

Western blot analysis of Integrin beta 3 on different lysates with Rabbit anti-Integrin beta 3 antibody (HA723085) at 1/5,000 dilution. Lane 1: U-87 MG cell lysate (20 µg/Lane) Lane 2: LNCaP cell lysate (low expression) (20 µg/Lane) Lane 3: HUVEC cell lysate (20 µg/Lane) Lane 4: C2C12 cell lysate (20 µg/Lane) Lane 5: Mouse spleen tissue lysate (40 µg/Lane) Lane 6: Rat spleen tissue lysate (40 µg/Lane) Predicted band size: 87 kDa Observed band size: 100 kDa Exposure time: 20 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723085) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Application: IF-Tissue Species: Human Site: spleen Sample: Paraffin-embedded section Antibody concentration: 1/1,000

image 3 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Integrin beta 3 antibody (HA723085) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723085) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA723085

Target name :

Integrin beta 3

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IF-Tissue

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human Integrin beta 3 aa 101-150.

Uniprot id :

P05106>SwissProt: P05106 Human;SwissProt: O54890 Mouse;Entrez Gene: 29302 Rat

Host :

Rabbit

Clone number :

PSH09-27

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

U-87 MG cell lysate, LNCaP cell lysate, HUVEC cell lysate, C2C12 cell lysate, Mouse spleen tissue lysate, Rat spleen tissue lysate, human kidney tissue, human spleen tissue, mouse spleen tissue, rat spleen tissue.

Molecular wt :

Predicted band size: 87 kDa

Subcellular location :

Cell membrane, Cell projection, lamellipodium membrane, Cell junction, focal adhesion, Postsynaptic cell membrane, Synapse.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:5,000 ;IHC-P: 1:2,000 ;IF-Tissue: 1:1,000

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA723085_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rabbit anti-Integrin beta 3 antibody (HA723085) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723085) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA723085_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-Integrin beta 3 antibody (HA723085) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723085) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA723085_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat spleen tissue with Rabbit anti-Integrin beta 3 antibody (HA723085) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723085) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
