PAG | HUABIO HA722457 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PAG

catalog :

HA722457

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JE41-56

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

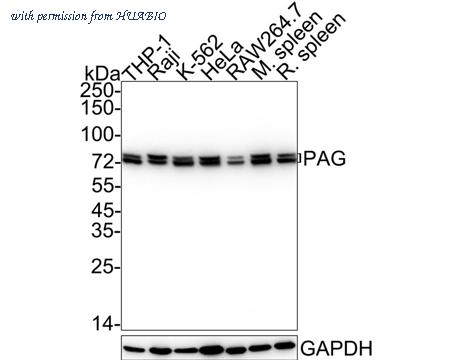

Western blot analysis of PAG on different lysates with Rabbit anti-PAG antibody (HA722457) at 1/1,000 dilution. Lane 1: THP-1 cell lysate (20 µg/Lane) Lane 2: Raji cell lysate (20 µg/Lane) Lane 3: K-562 cell lysate (20 µg/Lane) Lane 4: HeLa cell lysate (20 µg/Lane) Lane 5: RAW264.7 cell lysate (20 µg/Lane) Lane 6: Mouse spleen tissue lysate (40 µg/Lane) Lane 7: Rat spleen tissue lysate (40 µg/Lane) Predicted band size: 47 kDa Observed band size: 70-75 kDa Exposure time: 2 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722457) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunocytochemistry analysis of HeLa cells labeling PAG with Rabbit anti-PAG antibody (HA722457) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PAG antibody (HA722457) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

image 3 :

Immunocytochemistry analysis of RAW264.7 cells labeling PAG with Rabbit anti-PAG antibody (HA722457) at 1/500 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PAG antibody (HA722457) at 1/500 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA722457

Target name :

PAG

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human PAG aa 383-432 / 432.

Uniprot id :

Q9NWQ8>SwissProt: Q9NWQ8 Human;SwissProt: Q3U1F9 Mouse;SwissProt: Q9JM80 Rat

Host :

Rabbit

Clone number :

JE41-56

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

THP-1 cell lysate, Raji cell lysate, K-562 cell lysate, HeLa cell lysate, RAW264.7 cell lysate, mouse spleen tissue lysate, rat spleen tissue lysate, HeLa, RAW264.7, PC-12, human appendix tissue, human colorectal cancer tissue, human lung tissue, human spleen tissue, mouse spleen tissue, rat spleen tissue.

Molecular wt :

Predicted band size: 47 kDa

Subcellular location :

Cell membrane

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000 ;IHC-P: 1:1,000-1:5,000 ;IF-Cell: 1:100

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA722457_4.jpg

Pic legend4 :

Immunocytochemistry analysis of PC-12 cells labeling PAG with Rabbit anti-PAG antibody (HA722457) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PAG antibody (HA722457) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA722457_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human appendix tissue with Rabbit anti-PAG antibody (HA722457) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722457) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA722457_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human colorectal cancer tissue with Rabbit anti-PAG antibody (HA722457) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722457) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA722457_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-PAG antibody (HA722457) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722457) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA722457_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rabbit anti-PAG antibody (HA722457) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722457) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA722457_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-PAG antibody (HA722457) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722457) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA722457_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded rat spleen tissue with Rabbit anti-PAG antibody (HA722457) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722457) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
