PMF-1 | HUABIO HA722365 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PMF-1

catalog :

HA722365

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JE65-48

reactivity :

human, mouse, rat

application :

western blot

more info or order :

HUABIO product webpage


image 1 :

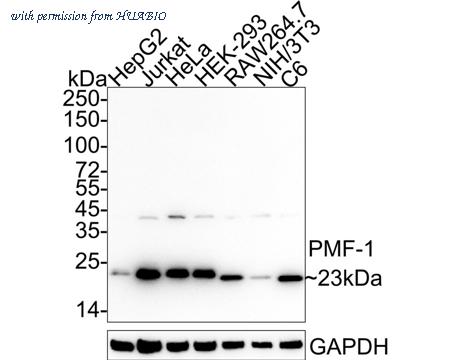

Western blot analysis of PMF-1 on different lysates with Rabbit anti-PMF-1 antibody (HA722365) at 1/1,000 dilution. Lane 1: HepG2 cell lysate Lane 2: Jurkat cell lysate Lane 3: HeLa cell lysate Lane 4: HEK-293 cell lysate Lane 5: RAW264.7 cell lysate Lane 6: NIH/3T3 cell lysate Lane 7: C6 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 23 kDa Observed band size: 23 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722365) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

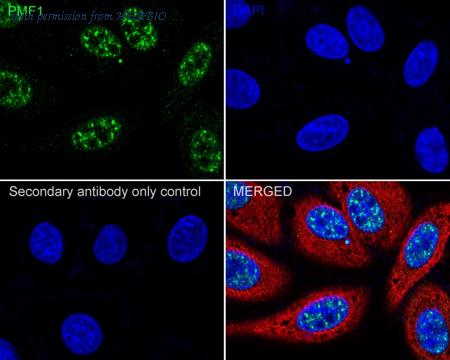

Immunocytochemistry analysis of HepG2 cells labeling PMF-1 with Rabbit anti-PMF-1 antibody (HA722365) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PMF-1 antibody (HA722365) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

image 3 :

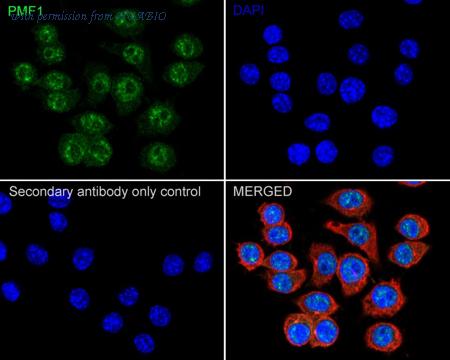

Immunocytochemistry analysis of RAW264.7 cells labeling PMF-1 with Rabbit anti-PMF-1 antibody (HA722365) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PMF-1 antibody (HA722365) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA722365

Target name :

PMF-1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human PMF1 aa 1-205.

Uniprot id :

Q6P1K2>SwissProt: Q6P1K2 Human;SwissProt: Q9CPV5 Mouse;Entrez Gene: 681050 Rat

Host :

Rabbit

Clone number :

JE65-48

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HepG2 cell lysate, Jurkat cell lysate, HeLa cell lysate, HEK-293 cell lysate, RAW264.7 cell lysate, NIH/3T3 cell lysate, C6 cell lysate, HepG2, RAW264.7, C6.

Molecular wt :

Predicted band size: 23 kDa

Subcellular location :

Nucleus, Chromosome, centromere, kinetochore.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000 ;IF-Cell: 1:100

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA722365_4.jpg

Pic legend4 :

Immunocytochemistry analysis of C6 cells labeling PMF-1 with Rabbit anti-PMF-1 antibody (HA722365) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PMF-1 antibody (HA722365) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

more info or order :

HUABIO product webpage
