BNIP3L | HUABIO HA722056 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

BNIP3L

catalog :

HA722056

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JE59-98

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

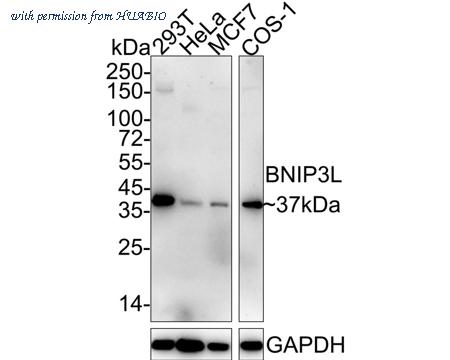

Western blot analysis of BNIP3L on different lysates with Rabbit anti-BNIP3L antibody (HA722056) at 1/2,000 dilution. Lane 1: 293T cell lysate Lane 2: HeLa cell lysate Lane 3: MCF7 cell lysate Lane 4: COS-1 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 24 kDa Observed band size: 37 kDa Exposure time: 1 minute 21 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722056) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

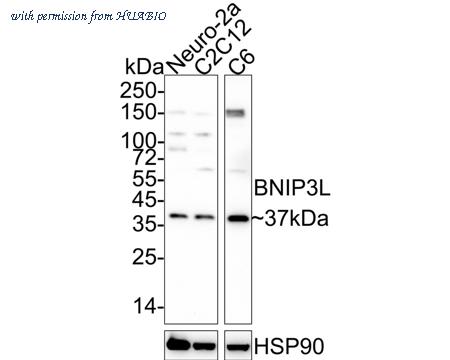

Western blot analysis of BNIP3L on different lysates with Rabbit anti-BNIP3L antibody (HA722056) at 1/1,000 dilution. Lane 1: Neuro-2a cell lysate Lane 2: C2C12 cell lysate Lane 3: C6 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 24 kDa Observed band size: 37 kDa Exposure time: 5 minutes 20 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722056) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded human bone marrow tissue with Rabbit anti-BNIP3L antibody (HA722056) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722056) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA722056

Target name :

BNIP3L

Species reactivity :

Human,Mouse,Rat,Monkey

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human BNIP3L aa 120-219 / 219.

Uniprot id :

O60238>SwissProt: O60238 Human;SwissProt: Q9Z2F7 Mouse;Entrez Gene: 140923 Rat

Host :

Rabbit

Clone number :

JE59-98

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

293T cell lysate, HeLa cell lysate, MCF7 cell lysate, COS-1 cell lysate, Neuro-2a cell lysate, C2C12 cell lysate, C6 cell lysate, human bone marrow tissue, human kidney tissue, human thyroid cancer tissue, mouse adipose tissue.

Molecular wt :

Predicted band size: 24 kDa

Subcellular location :

Nucleus envelope, Endoplasmic reticulum, Mitochondrion outer membrane, Membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000-1:2,000 ;IHC-P: 1:500-1:2,000

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA722056_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-BNIP3L antibody (HA722056) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722056) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA722056_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human thyroid cancer tissue with Rabbit anti-BNIP3L antibody (HA722056) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722056) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA722056_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse adipose tissue with Rabbit anti-BNIP3L antibody (HA722056) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722056) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
