MAPK6 / ERK3 | HUABIO HA721984 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

MAPK6 / ERK3

catalog :

HA721984

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH03-39

reactivity :

human, mouse, rat

application :

western blot, flow cytometry

more info or order :

HUABIO product webpage


image 1 :

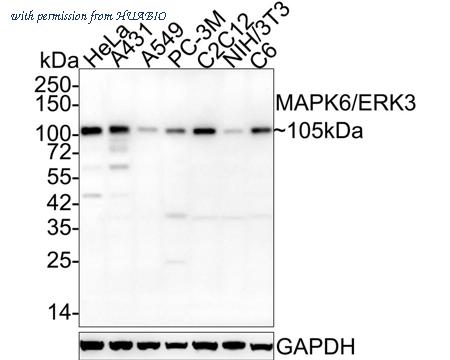

Western blot analysis of MAPK6 / ERK3 on different lysates with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/2,000 dilution. Lane 1: HeLa cell lysate Lane 2: A431 cell lysate Lane 3: A549 cell lysate Lane 4: PC-3M cell lysate Lane 5: C2C12 cell lysate Lane 6: NIH/3T3 cell lysate Lane 7: C6 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 83 kDa Observed band size: 105 kDa Exposure time: 5 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721984) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

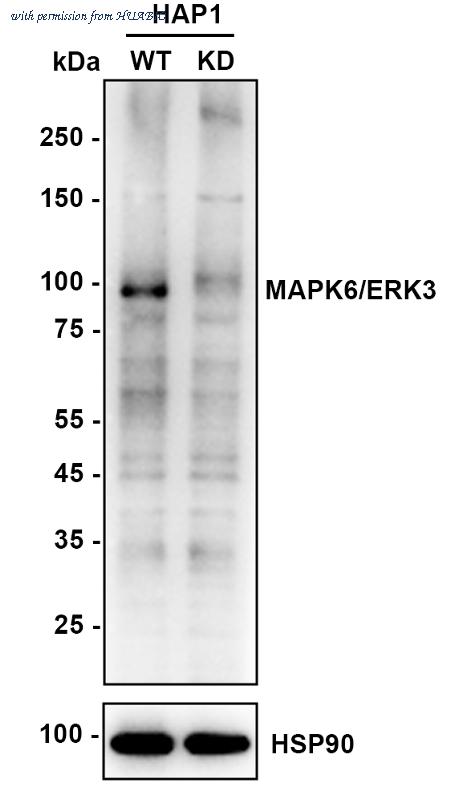

Western blot analysis of MAPK6 / ERK3 on different lysates with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/5,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-MAPK6 / ERK3 KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 83 kDa Observed band size: 100 kDa Exposure time: 40 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721984) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

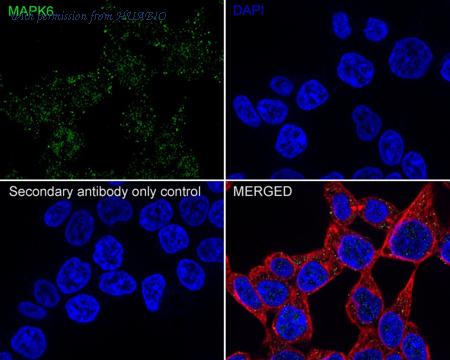

Immunocytochemistry analysis of 293T cells labeling MAPK6 / ERK3 with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA721984

Target name :

MAPK6 / ERK3

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,FC

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human MAPK6 aa 1-350 / 721.

Uniprot id :

Q16659>SwissProt: Q16659 Human;SwissProt: Q61532 Mouse;SwissProt: P27704 Rat

Host :

Rabbit

Clone number :

PSH03-39

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, A431 cell lysate, A549 cell lysate, PC-3M cell lysate, C2C12 cell lysate, NIH/3T3 cell lysate, C6 cell lysate, 293T, C2C12, C6.

Molecular wt :

Predicted band size: 83 kDa

Subcellular location :

Cytoplasm, Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IF-Cell: 1:100 ;FC: 1:1,000

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA721984_4.jpg

Pic legend4 :

Immunocytochemistry analysis of C2C12 cells labeling MAPK6 / ERK3 with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA721984_5.jpg

Pic legend5 :

Immunocytochemistry analysis of C6 cells labeling MAPK6 / ERK3 with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-MAPK6 / ERK3 antibody (HA721984) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA721984_6.jpg

Pic legend6 :

Flow cytometric analysis of 293T cells labeling MAPK6 / ERK3. Cells were fixed and permeabilized. Then stained with the primary antibody (HA721984, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA721984_7.jpg

Pic legend7 :

Flow cytometric analysis of C6 cells labeling MAPK6 / ERK3. Cells were fixed and permeabilized. Then stained with the primary antibody (HA721984, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
