SLC12A1 / NKCC2 | HUABIO HA721906 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

SLC12A1 / NKCC2

catalog :

HA721906

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JE64-26

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

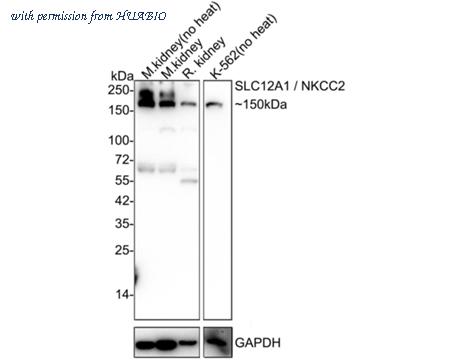

Western blot analysis of SLC12A1 / NKCC2 on different lysates with Rabbit anti-SLC12A1 / NKCC2 antibody (HA721906) at 1/1,000 dilution. Lane 1: mouse kidney tissue lysate (no heat) Lane 2: mouse kidney tissue lysate Lane 3: rat kidney tissue lysate Lane 4: K-562 cell lysate (no heat) Notice: no heat means the lysate is not boiled. Tissue lysates at 30 µg/Lane. Cell lysates at 20 µg/Lane. Predicted band size: 121 kDa Observed band size: 150 kDa Exposure time: 1 minutes 40 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721906) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Fluorescence multiplex immunohistochemical analysis of mouse kidney (Formalin/PFA-fixed paraffin-embedded sections). Panel A: the merged image of anti-NPHS2 (ET7107-34, Red), anti-Laminin beta 1 (ET1703-14, Green), anti-Histone H3 (EM30605, Blue), anti-SLC12A1 / NKCC2 (HA721906, Cyan) and anti-CK18 (ET1603-8, Magenta) on kidney. HRP Conjugated UltraPolymer Goat Polyclonal Antibody HA1119/HA1120 was used as a secondary antibody. The immunostaining was performed with the Sequential Immuno-staining Kit (IRISKit™MH010101, www.luminiris.cn). The section was incubated in five rounds of staining: in the order of ET7107-34 (1/1,000 dilution), ET1703-14 (1/1,000 dilution), EM30605 (1/500 dilution), HA721906 (1/3,000 dilution) and ET1603-8 (1/3,000 dilution) for 20 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins at 95℃. Image acquisition was performed with Olympus VS200 Slide Scanner.

image 3 :

Fluorescence multiplex immunohistochemical analysis of mouse kidney (Formalin/PFA-fixed paraffin-embedded sections). Panel A: the merged image of anti-Laminin beta 1 (ET1703-14, Yellow), anti-NPHS2 (ET7107-34, Red) and anti-SLC12A1/NKCC2 (HA721906, Violet) on kidney. HRP Conjugated UltraPolymer Goat Polyclonal Antibody HA1119/HA1120 was used as a secondary antibody. The immunostaining was performed with the Sequential Immuno-staining Kit (IRISKit™MH010101, www.luminiris.cn). The section was incubated in three rounds of staining: in the order of ET1703-14 (1/1,000 dilution), ET7107-34 (1/1,000 dilution) and HA721906 (1/3,000 dilution) for 20 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins at 95℃. DAPI (blue) was used as a nuclear counter stain. Image acquisition was performed with Zeiss Observer 7 Inverted Fluorescence Microscope.

product information

SKU :

HA721906

Target name :

SLC12A1 / NKCC2

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IF-Cell,mIHC

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human SLC12A1 / NKCC2 aa 593-813 / 1,099.

Uniprot id :

Q13621>SwissProt: Q13621 Human;SwissProt: P55014 Mouse;SwissProt: P55016 Rat

Host :

Rabbit

Clone number :

JE64-26

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

Mouse kidney tissue lysate, rat kidney tissue lysate, K-562 cell lysate, mouse kidney tissue, K-562.

Molecular wt :

Predicted band size: 121 kDa

Subcellular location :

Cell membrane

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IHC-P: 1:20,000 ;IF-Cell: 1:100 ;mIHC: 1:3,000

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA721906_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-SLC12A1 / NKCC2 antibody (HA721906) at 1/20,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721906) at 1/20,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA721906_5.jpg

Pic legend5 :

Immunocytochemistry analysis of K-562 cells labeling SLC12A1 / NKCC2 with Rabbit anti-SLC12A1 / NKCC2 antibody (HA721906) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde and 80% methanol for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-SLC12A1 / NKCC2 antibody (HA721906) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

more info or order :

HUABIO product webpage
