PICALM | HUABIO HA721706 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PICALM

catalog :

HA721706

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH01-63

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

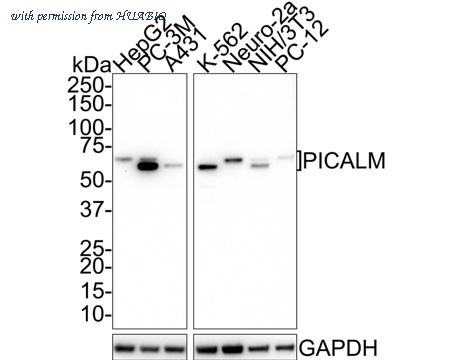

Western blot analysis of PICALM on different lysates with Rabbit anti-PICALM antibody (HA721706) at 1/1,000 dilution. Lane 1: HepG2 cell lysate Lane 2: PC-3M cell lysate Lane 3: A431 cell lysate Lane 4: K-562 cell lysate Lane 5: Neuro-2a cell lysate Lane 6: NIH/3T3 cell lysate Lane 7: PC-12 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 71 kDa Observed band size: 65/71 kDa Exposure time: 3 minutes; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721706) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human breast tissue with Rabbit anti-PICALM antibody (HA721706) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721706) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded human placenta tissue with Rabbit anti-PICALM antibody (HA721706) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721706) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA721706

Target name :

PICALM

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human PICALM aa 1-450.

Uniprot id :

Q13492>SwissProt: Q13492 Human;SwissProt: Q7M6Y3 Mouse;SwissProt: O55012 Rat

Host :

Rabbit

Clone number :

PSH01-63

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HepG2 cell lysate, PC-3M cell lysate, A431 cell lysate, K-562 cell lysate, Neuro-2a cell lysate, NIH/3T3 cell lysate, PC-12 cell lysate, human breast tissue, human placenta tissue, mouse brain tissue, rat brain tissue.

Molecular wt :

Predicted band size: 71 kDa

Subcellular location :

Cell membrane, Coated pit, Cytoplasmic vesicle, Golgi apparatus, Membrane, Nucleus

Concentration :

1 mg/ml

Recommended dilutions :

WB: 1:1,000 ;IHC-P: 1:50

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA721706_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-PICALM antibody (HA721706) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721706) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA721706_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-PICALM antibody (HA721706) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721706) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

more info or order :

HUABIO product webpage
