product summary
Loading...
company name :
HUABIO
product type :
antibody
product name :
Phospho-PDHA1 (S293)
catalog :
HA721443
quantity :
100μl
price :
385.00 USD
clonality :
monoclonal
host :
domestic rabbit
conjugate :
nonconjugated
clone name :
JE58-27
reactivity :
human, mouse, rat
application :
western blot, immunocytochemistry, immunohistochemistry - paraffin section
more info or order :
image 1 :

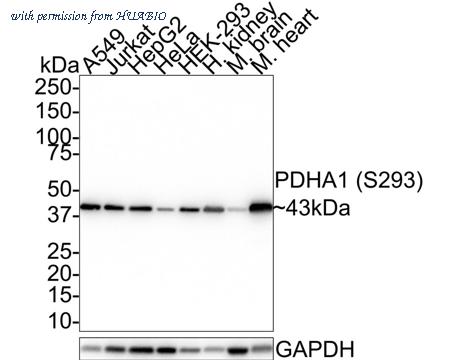

Western blot analysis of Phospho-PDHA1 (S293) on different lysates with Rabbit anti-Phospho-PDHA1 (S293) antibody (HA721443) at 1/1,000 dilution.
Lane 1: A549 cell lysate (20 µg/Lane)
Lane 2: Jurkat cell lysate (20 µg/Lane)
Lane 3: HepG2 cell lysate (20 µg/Lane)
Lane 4: HeLa cell lysate (20 µg/Lane)
Lane 5: HEK-293 cell lysate (20 µg/Lane)
Lane 6: Human kidney tissue lysate (40 µg/Lane)
Lane 7: Mouse brain tissue lysate (40 µg/Lane)
Lane 8: Mouse heart tissue lysate (40 µg/Lane)
Predicted band size: 43 kDa
Observed band size: 43 kDa
Exposure time: 39 seconds;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721443) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:100,000 dilution was used for 1 hour at room temperature.
image 2 :

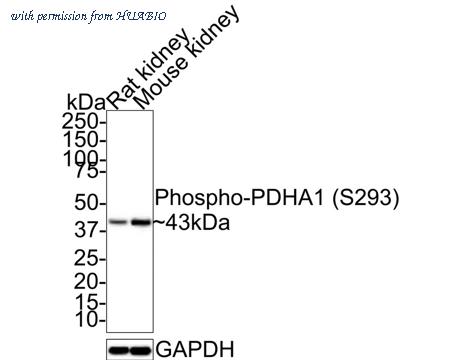

Western blot analysis of Phospho-PDHA1 (S293) on different lysates with Rabbit anti-Phospho-PDHA1 (S293) antibody (HA721443) at 1/1,000 dilution.
Lane 1: Rat kidney tissue lysate
Lane 2: Mouse kidney tissue lysate
Lysates/proteins at 30 µg/Lane.
Predicted band size: 43 kDa
Observed band size: 43 kDa
Exposure time: 10 seconds;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721443) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:100,000 dilution was used for 1 hour at room temperature.
image 3 :
Immunocytochemistry analysis of Jurkat cells treated with or without λpp labeling Phospho-PDHA1 (S293) with Rabbit anti-Phospho-PDHA1 (S293) antibody (HA721443) at 1/100 dilution.
Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-Phospho-PDHA1 (S293) antibody (HA721443) at 1/100 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.
Beta tubulin (M1305-2, red) was stained at 1/200 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
product information
SKU :
HA721443
Target name :
Phospho-PDHA1 (S293)
Species reactivity :
Human,Mouse,Rat
Applications :
WB,ICC,IHC-P
Conjugate :
Non-conjugated
Immunogen :
Synthetic phosphopeptide corresponding to residues surrounding Ser293 of human PDHA1 protein.
Uniprot id :
P08559>SwissProt: P08559 Human;SwissProt: P35486 Mouse;SwissProt: P26284 Rat
Host :
Rabbit
Clone number :
JE58-27
Isotype :
IgG
Size :
100μl
List Price :
385.00 USD
Storage Buffer :
1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Form :
Liquid
Storage Instruction :
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Purity :
Protein A affinity purified.
Product type :
Recombinant Rabbit monoclonal Antibody
Positive control :
A549 cell lysate, Jurkat cell lysate, HepG2 cell lysate, HeLa cell lysate, HEK-293 cell lysate, human kidney tissue lysate, mouse brain tissue lysate, mouse heart tissue lysate, rat kidney tissue lysate, mouse kidney tissue lysate, Jurkat, human renal clear cell carcinoma tissue, mouse brain tissue, rat colon tissue.
Molecular wt :
Predicted band size: 43 kDa
Subcellular location :
Mitochondrion matrix.
Concentration :
1 mg/mL.
Recommended dilutions :
WB: 1:1,000
;ICC: 1:100
;IHC-P: 1:500-1:2,000
Advanced Validation :
Cell treatment (CT)
Pic img4 :
https://storage.huabio.cn/huabio/productImg/HA721443_4.jpg
Pic legend4 :
Immunohistochemical analysis of paraffin-embedded human renal clear cell carcinoma tissue with Rabbit anti-Phospho-PDHA1 (S293) antibody (HA721443) at 1/500 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721443) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Pic img5 :
https://storage.huabio.cn/huabio/productImg/HA721443_5.jpg
Pic legend5 :
Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-Phospho-PDHA1 (S293) antibody (HA721443) at 1/500 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721443) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Pic img6 :
https://storage.huabio.cn/huabio/productImg/HA721443_6.jpg
Pic legend6 :
Immunohistochemical analysis of paraffin-embedded rat colon tissue with Rabbit anti-Phospho-PDHA1 (S293) antibody (HA721443) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721443) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
