LAG-3 | HUABIO HA721344 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

LAG-3

catalog :

HA721344

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH0-42

reactivity :

mouse

application :

western blot

more info or order :

HUABIO product webpage


image 1 :

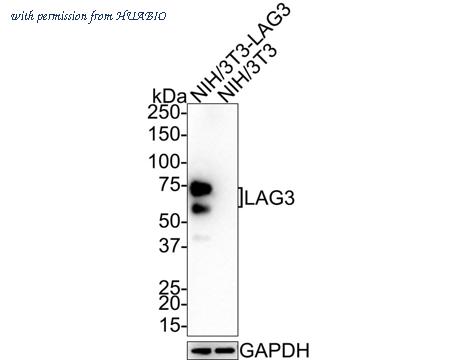

Western blot analysis of LAG-3 on different lysates with Rabbit anti-LAG-3 antibody (HA721344) at 1/2,000 dilution. Lane 1: NIH/3T3 transfected with LAG3 expression vector, whole cell lysate Lane 2: NIH/3T3 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 57.4 kDa Observed band size: 55/70 kDa (Glycosylation) Exposure time: 1 minute 10 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721344) at 1/2,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature.

image 2 :

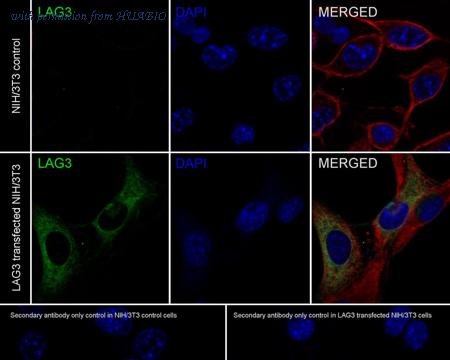

Immunocytochemistry analysis of NIH/3T3 cells transfected with or without LAG3 labeling LAG-3 with Rabbit anti-LAG-3 antibody (HA721344) at 1/100 dilution. Cells were fixed in 100% methanol for 10 minutes, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes, and then blocked with 1% BSA for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-LAG-3 antibody (HA721344) at 1/100 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA721344

Target name :

LAG-3

Species reactivity :

Mouse

Applications :

WB,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human LAG-3 aa 1-500 / 525.

Uniprot id :

Q61790>SwissProt: Q61790 Mouse

Host :

Rabbit

Clone number :

PSH0-42

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

NIH/3T3 transfected with LAG3 cell lysate, NIH/3T3 transfected with LAG3.

Molecular wt :

Predicted band size: 57.4 kDa

Subcellular location :

Cell membrane; Secreted.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IF-Cell: 1:100

Advanced Validation :

Cell treatment (CT)
