Connexin 43 | HUABIO HA721312 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Connexin 43

catalog :

HA721312

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PSH0-32

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section, immunohistochemistry - frozen section

more info or order :

HUABIO product webpage


image 1 :

Application: IHC-Fr Species: Mouse Site: Cerebellum Sample: Frozen section Antibody concentration: 1:500 Antigen retrieval: Not required

image 2 :

Application: IHC-Fr Species: Rat Site: Cerebellum Sample: Frozen section Antibody concentration: 1:500 Antigen retrieval: Not required

image 3 :

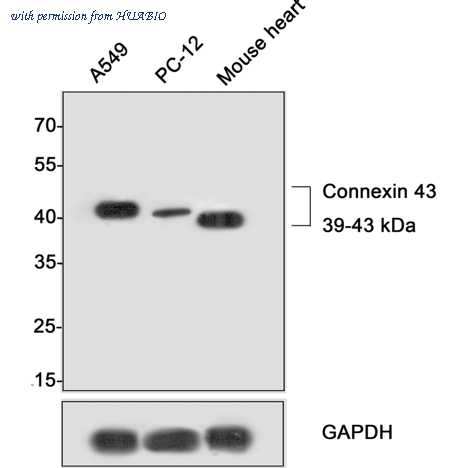

Western blot analysis of Connexin 43 on different lysates with Rabbit anti-Connexin 43 antibody (HA721312) at 1/1,000 dilution. Lane 1: A549 cell lysate (10 µg/Lane) Lane 2: PC-12 cell lysate (10 µg/Lane) Lane 3: Mouse heart lysate (20 µg/Lane) Predicted band size: 43 kDa Observed band size: 39-43 kDa Exposure time: 2 minutes; 10% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721312) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

product information

SKU :

HA721312

Target name :

Connexin 43

Species reactivity :

Human,Mouse,Rat,Cynomolgus monkey,Pig

Applications :

WB,IHC-P,IHC-Fr

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human Connexin 43 aa 219-382.

Uniprot id :

P17302>SwissProt: P17302 Human;SwissProt: P23242 Mouse;SwissProt: P08050 Rat

Host :

Rabbit

Clone number :

PSH0-32

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

A549 cell lysate, PC-12 cell lysate, mouse heart lysate, human heart tissue, human testis tissue.

Molecular wt :

Predicted band size: 43 kDa

Subcellular location :

Plasma membrane. Endoplasmic reticulum. Cell junction, gap junction.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000 ;IHC-P: 1:5,000-1:10,000 ;IHC-Fr: 1:500

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA721312_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit Connexin 43 antibody (HA721312) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA721312_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human testis tissue with Rabbit Connexin 43 antibody (HA721312) at 1/10,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA721312_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit Connexin 43 antibody (HA721312) at 1/10,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA721312_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded mouse cerebral cortex tissue with Rabbit Connexin 43 antibody (HA721312) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA721312_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded rat cerebral cortex tissue with Rabbit Connexin 43 antibody (HA721312) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA721312_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rabbit Connexin 43 antibody (HA721312) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/HA721312_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue with Rabbit Connexin 43 antibody (HA721312) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img11 :

https://storage.huabio.cn/huabio/productImg/HA721312_11.jpg

Pic legend11 :

Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit Connexin 43 antibody (HA721312) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img12 :

https://storage.huabio.cn/huabio/productImg/HA721312_12.jpg

Pic legend12 :

Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit Connexin 43 antibody (HA721312) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img13 :

https://storage.huabio.cn/huabio/productImg/HA721312_13.jpg

Pic legend13 :

Immunohistochemical analysis of paraffin-embedded mouse testis tissue with Rabbit Connexin 43 antibody (HA721312) at 1/10,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img14 :

https://storage.huabio.cn/huabio/productImg/HA721312_14.jpg

Pic legend14 :

Immunohistochemical analysis of paraffin-embedded rat testis tissue with Rabbit Connexin 43 antibody (HA721312) at 1/10,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721312) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

more info or order :

HUABIO product webpage
