SNX5 | HUABIO HA721084 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

SNX5

catalog :

HA721084

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JE64-96

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

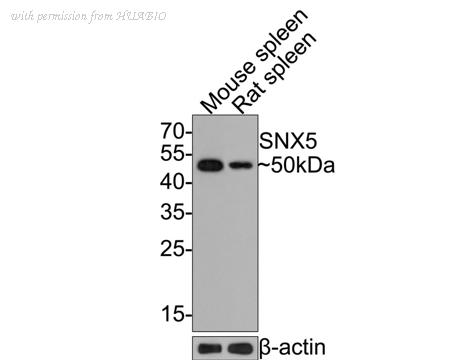

Western blot analysis of SNX5 on different lysates with Rabbit anti-SNX5 antibody (HA721084) at 1/500 dilution. Lane 1: Mouse spleen tissue lysate Lane 2: Rat spleen tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 47 kDa Observed band size: 50 kDa Exposure time: 2 minutes; 12% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721084) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

image 2 :

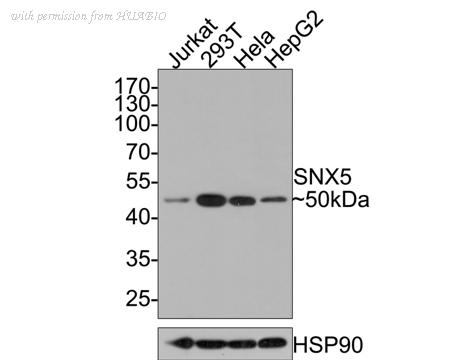

Western blot analysis of SNX5 on different lysates with Rabbit anti-SNX5 antibody (HA721084) at 1/500 dilution. Lane 1: Jurkat cell lysate Lane 2: 293T cell lysate Lane 3: Hela cell lysate Lane 4: HepG2 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 47 kDa Observed band size: 50 kDa Exposure time: 2 minutes; 10% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721084) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded human lymph nodes tissue with Rabbit anti-SNX5 antibody (HA721084) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721084) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA721084

Target name :

SNX5

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human SNX5 aa 1-150/404.

Uniprot id :

Q9Y5X3>SwissProt: Q9Y5X3 Human;SwissProt: Q9D8U8 Mouse;SwissProt: B1H267 Rat

Host :

Rabbit

Clone number :

JE64-96

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

Mouse spleen tissue lysate, Rat spleen tissue lysate, Jurkat cell lysate, 293T cell lysate, Hela cell lysate, HepG2 cell lysate, human lymph nodes tissue, human thyroid carcinoma tissue, mouse kidney tissue, rat kidney tissue.

Molecular wt :

Predicted band size: 47 kDa

Subcellular location :

Cytoplasm, Endosome, Early endosome, Early endosome membrane, Cell membrane, Cytoplasmic vesicle membrane, phagocytic cup, ruffle.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500 ;IHC-P: 1:100-1:400

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA721084_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human thyroid carcinoma tissue with Rabbit anti-SNX5 antibody (HA721084) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721084) at 1/100 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA721084_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-SNX5 antibody (HA721084) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721084) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA721084_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-SNX5 antibody (HA721084) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721084) at 1/100 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
