Erlin-2 | HUABIO HA720009 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Erlin-2

catalog :

HA720009

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JE57-03

reactivity :

human, mouse

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

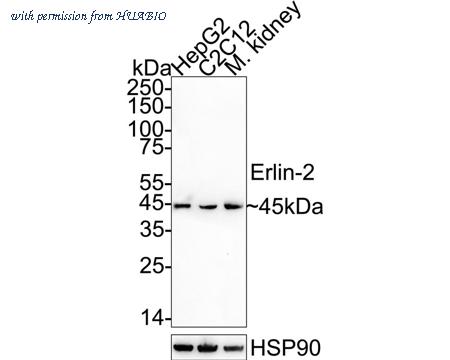

Western blot analysis of Erlin-2 on different lysates with Rabbit anti-Erlin-2 antibody (HA720009) at 1/1,000 dilution. Lane 1: HepG2 cell lysate (20 µg/Lane) Lane 2: C2C12 cell lysate (20 µg/Lane) Lane 3: Mouse kidney tissue lysate (40 µg/Lane) Predicted band size: 38 kDa Observed band size: 45 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA720009) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

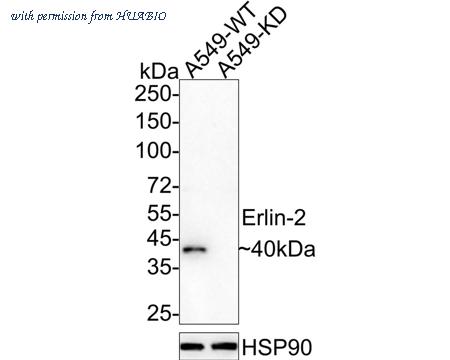

Western blot analysis of Erlin-2 on different lysates with Rabbit anti-Erlin-2 antibody (HA720009) at 1/1,000 dilution. Lane 1: A549-WT cell lysate Lane 2: A549-KD Erlin-2 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 38 kDa Observed band size: 40 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA720009) at 1/1,000 dilution was used in 2% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue using anti-Erlin-2 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720009, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA720009

Target name :

Erlin-2

Species reactivity :

Human,Mouse

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human Erlin-2 aa 50-200 (Lumenal).

Uniprot id :

O94905>SwissProt: O94905 Human;SwissProt: Q8BFZ9 Mouse

Host :

Rabbit

Clone number :

JE57-03

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HepG2 cell lysate, C2C12 cell lysate, mouse kidney tissue lysate, A549 cell lysate, human colon carcinoma tissue, human placenta tissue, mouse brain tissue, mouse kidney tissue.

Molecular wt :

Predicted band size: 38 kDa

Subcellular location :

Endoplasmic reticulum membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500-1:1,000 ;IHC-P: 1:50-1:200

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA720009_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-Erlin-2 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720009, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA720009_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue using anti-Erlin-2 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720009, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA720009_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue using anti-Erlin-2 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720009, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
