CD20 | HUABIO HA601544 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

CD20

catalog :

HA601544

quantity :

100μl

price :

360.00 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

PD00-02

reactivity :

human, mouse

application :

western blot, immunohistochemistry - paraffin section, immunohistochemistry - frozen section

more info or order :

HUABIO product webpage


image 1 :

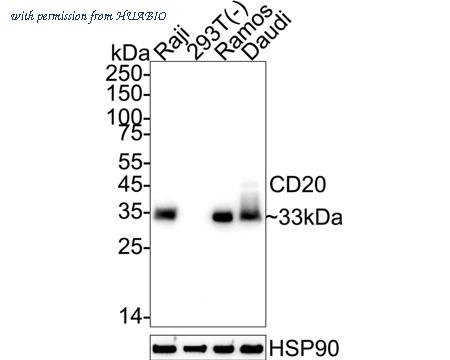

Western blot analysis of CD20 on different lysates with Mouse anti-CD20 antibody (HA601544) at 1/5,000 dilution. Lane 1: Raji cell lysate (20 µg/Lane) Lane 2: 293T cell lysate (negative) (20 µg/Lane) Lane 3: Ramos cell lysate (20 µg/Lane) Lane 4: Daudi cell lysate (20 µg/Lane) Predicted band size: 33 kDa Observed band size: 33 kDa Exposure time: 10 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601544) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue with Mouse anti-CD20 antibody (HA601544) at 1/20,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601544) at 1/20,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Mouse anti-CD20 antibody (HA601544) at 1/20,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601544) at 1/20,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA601544

Target name :

CD20

Species reactivity :

Human,Mouse

Applications :

WB,IHC-P,IHC-Fr

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human CD20 aa 210-297 (Cytoplasmic).

Uniprot id :

P11836>SwissProt: P11836 Human;SwissProt: P19437 Mouse

Host :

rabbit

Clone number :

PD00-02

Size :

100μl

List Price :

360.00 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Chimeric Antibody Antibody

Positive control :

Raji cell lysate, Ramos cell lysate, Daudi cell lysate, human tonsil tissue, mouse spleen tissue.

Molecular wt :

Predicted band size: 33 kDa

Subcellular location :

Cell membrane

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:5,000 ;IHC-P: 1:20,000 ;IHC-Fr: 1:500

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA601544_4.jpg

Pic legend4 :

Application: IHC-Fr Species: Mouse Site: Spleen Sample: Frozen section Antibody concentration: 1/500 Antigen retrieval: Not required
