product summary
Loading...
company name :
HUABIO
product type :
antibody
product name :
GRP78 / BIP
catalog :
HA601076
quantity :
100μl
price :
360.00 USD
clonality :
monoclonal
host :
mouse
conjugate :
nonconjugated
clone name :
C9-9-R
reactivity :
human, mouse, rat, zebrafish
application :
western blot, immunohistochemistry - paraffin section
more info or order :
image 1 :

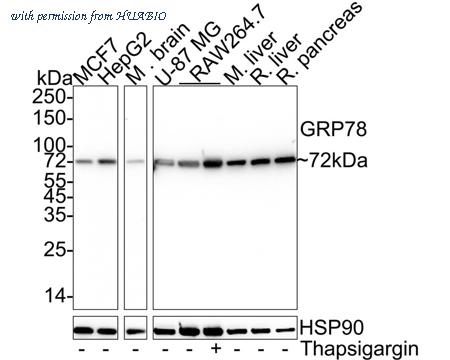

Western blot analysis of GRP78 / BIP on different lysates with Mouse anti-GRP78 / BIP antibody (HA601076) at 1/1,000 dilution.
Lane 1: MCF7 cell lysate (15 µg/Lane)
Lane 2: HepG2 cell lysate (15 µg/Lane)
Lane 3: Mouse brain tissue lysate (30 µg/Lane)
Lane 4: U-87 MG cell lysate (30 µg/Lane)
Lane 5: RAW264.7 cell lysate (30 µg/Lane)
Lane 6: RAW264.7 treated with 300nM Thapsigargin for 18 hours cell lysate (30 µg/Lane)
Lane 7: Mouse liver tissue lysate (30 µg/Lane)
Lane 8: Rat liver tissue lysate (30 µg/Lane)
Lane 9: Rat pancreas tissue lysate (30 µg/Lane)
Predicted band size: 72 kDa
Observed band size: 72 kDa
Exposure time: Lane 1-3: 11 seconds; Lane 4-9: 4 seconds; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601076) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature.
image 2 :
Immunohistochemical analysis of paraffin-embedded rat brain tissue with Mouse anti-GRP78 / BIP antibody (HA601076) at 1/200 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601076) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
image 3 :
Immunohistochemical analysis of paraffin-embedded mouse small intestine tissue with Mouse anti-GRP78 / BIP antibody (HA601076) at 1/200 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601076) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
product information
SKU :
HA601076
Target name :
GRP78 / BIP
Species reactivity :
Human,Mouse,Rat,Zebrafish
Applications :
WB,IHC-P,IF-Cell
Conjugate :
Non-conjugated
Immunogen :
Recombinant protein within human GRP78 aa 100-400.
Uniprot id :
P11021>SwissProt: P11021 Human;SwissProt: P20029 Mouse;SwissProt: P06761 Rat
Host :
Mouse
Clone number :
C9-9-R
Isotype :
IgG1
Size :
100μl
List Price :
360.00 USD
Storage Buffer :
PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Form :
Liquid
Storage Instruction :
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Purity :
Protein A affinity purified.
Product type :
Recombinant Mouse monoclonal Antibody
Positive control :
MCF7 cell lysate, HepG2 cell lysate, mouse brain tissue lysate, U-87 MG cell lysate, RAW264.7 cell lysate, RAW264.7 treated with 300nM Thapsigargin for 18 hours cell lysate, mouse liver tissue lysate, rat liver tissue lysate, rat pancreas tissue lysate, rat brain tissue, mouse small intestine tissue, Hela.
Molecular wt :
Predicted band size: 72 kDa
Subcellular location :
Cytoplasm, endoplasmic reticulum lumen
Concentration :
2 mg/mL.
Recommended dilutions :
WB: 1:1,000
;IHC-P: 1:200
;IF-Cell: 1:200
Advanced Validation :
Cell treatment (CT)
Pic img4 :
https://storage.huabio.cn/huabio/productImg/HA601076_4.png
Pic legend4 :
Immunocytochemistry analysis of Hela cells labeling GRP78 / BIP with Mouse anti-GRP78 / BIP antibody (HA601076) at 1/200 dilution.
Cells were fixed in 100% methanol for 10 minutes, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes, and then blocked with 1% BSA for 30 minutes at room temperature. Cells were then incubated with Mouse anti-GRP78 / BIP antibody (HA601076) at 1/200 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.
beta Tubulin (ET1602-4, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor™ 594, HA1122) were used as the secondary antibody at 1/1,000 dilution.
