Tim23 | HUABIO HA500398 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Tim23

catalog :

HA500398

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

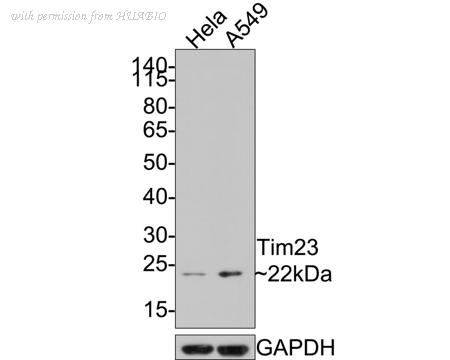

Western blot analysis of Tim23 on different lysates with Rabbit anti-Tim23 antibody (HA500398) at 1/1,000 dilution. Lane 1: Hela cell lysate Lane 2: A549 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 22 kDa Observed band size: 22 kDa Exposure time: 2 minutes; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA500398) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Tim23 antibody (HA500398) at 1/800 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500398) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded mouse colon tissue with Rabbit anti-Tim23 antibody (HA500398) at 1/800 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500398) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA500398

Target name :

Tim23

Species reactivity :

Human,Mouse

Applications :

WB,IHC-P,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human Tim23 aa 30-80.

Uniprot id :

O14925>SwissProt: O14925 Human;SwissProt: Q9WTQ8 Mouse

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

Hela cell lysate, A549 cell lysate, human kidney tissue, mouse colon tissue, A549.

Molecular wt :

Predicted band size: 22 kDa

Subcellular location :

Mitochondrion inner membrane.

Concentration :

2.21 mg/ml

Recommended dilutions :

WB: 1:1,000;IHC-P: 1:800;IF-Cell: 1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA500398_4.jpg

Pic legend4 :

Immunocytochemistry analysis of A549 cells labeling Tim23 with Rabbit anti-Tim23 antibody (HA500398) at 1/200 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-Tim23 antibody (HA500398) at 1/200 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 647, HA1127) were used as the secondary antibody at 1/1,000 dilution.
