Tim23 | HUABIO HA500361 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Tim23

catalog :

HA500361

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

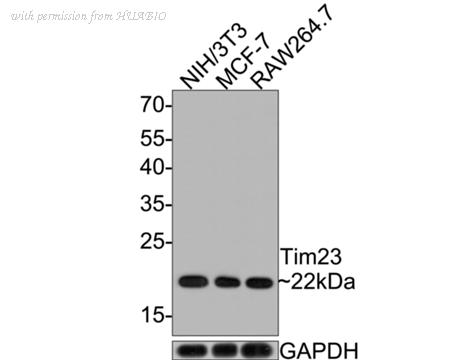

Western blot analysis of Tim23 on different lysates with Rabbit anti-Tim23 antibody (HA500361) at 1/500 dilution. Lane 1: NIH/3T3 cell lysate Lane 2: MCF-7 cell lysate Lane 3: RAW264.7 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 22 kDa Observed band size: 22 kDa Exposure time: 2 minutes; 12% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA500361) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

image 2 :

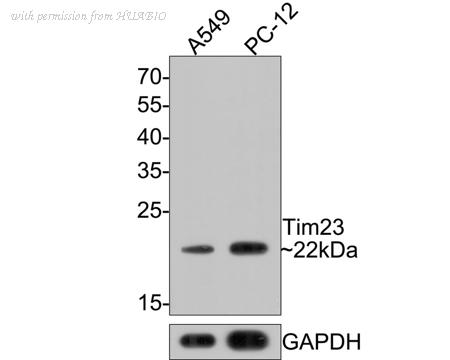

Western blot analysis of Tim23 on different lysates with Rabbit anti-Tim23 antibody (HA500361) at 1/1,000 dilution. Lane 1: A549 cell lysate Lane 2: PC-12 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 22 kDa Observed band size: 22 kDa Exposure time: 2 minutes; 12% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA500361) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded rat testis tissue with Rabbit anti-Tim23 antibody (HA500361) at 1/800 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500361) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA500361

Target name :

Tim23

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human Tim23 aa 150-209.

Uniprot id :

O14925>SwissProt: O14925 Human;SwissProt: Q9WTQ8 Mouse;SwissProt: O35093 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

NIH/3T3 cell lysate, MCF-7 cell lysate, RAW264.7 cell lysate, A549 cell lysate, PC-12 cell lysate, rat testis tissue, human kidney tissue, mouse colon tissue.

Molecular wt :

Predicted band size: 22 kDa

Subcellular location :

Mitochondrion inner membrane.

Concentration :

2 mg/ml

Recommended dilutions :

WB: 1:500-1:1,000 ;IHC-P: 1:800

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA500361_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Tim23 antibody (HA500361) at 1/800 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500361) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA500361_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse colon tissue with Rabbit anti-Tim23 antibody (HA500361) at 1/800 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500361) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

more info or order :

HUABIO product webpage
