PSMD2 | HUABIO HA500353 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PSMD2

catalog :

HA500353

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage

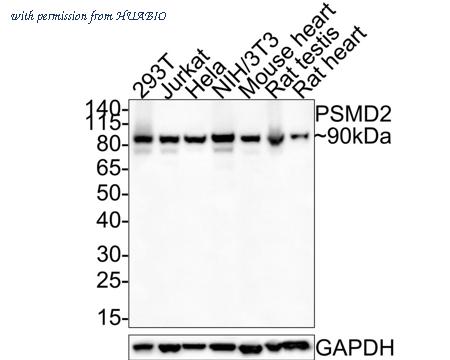

image 1 :

Western blot analysis of PSMD2 on different lysates with Rabbit anti-PSMD2 antibody (HA500353) at 1/1,000 dilution. Lane 1: 293T cell lysate (20 µg/Lane) Lane 2: Jurkat cell lysate (20 µg/Lane) Lane 3: Hela cell lysate (20 µg/Lane) Lane 4: NIH/3T3 cell lysate (20 µg/Lane) Lane 5: Mouse heart tissue lysate (27 µg/Lane) Lane 6: Rat testis tissue lysate (40 µg/Lane) Lane 7: Rat heart tissue lysate (20 µg/Lane) Predicted band size: 100 kDa Observed band size: 90 kDa Exposure time: 29 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA500353) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:100,000 dilution was used for 1 hour at room temperature.

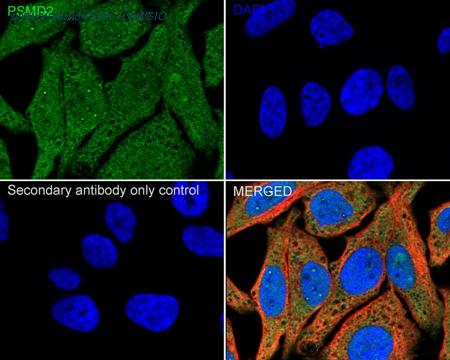

image 2 :

Immunocytochemistry analysis of HeLa cells labeling PSMD2 with Rabbit anti-PSMD2 antibody (HA500353) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PSMD2 antibody (HA500353) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

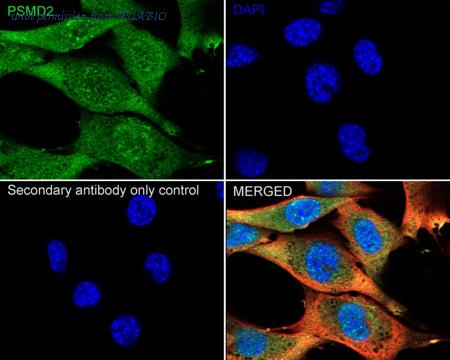

image 3 :

Immunocytochemistry analysis of NIH/3T3 cells labeling PSMD2 with Rabbit anti-PSMD2 antibody (HA500353) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PSMD2 antibody (HA500353) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

HA500353

Target name :

PSMD2

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human PSMD2 aa 1-200 / 908.

Uniprot id :

Q13200>SwissProt: Q13200 Human;SwissProt: Q8VDM4 Mouse;SwissProt: Q4FZT9 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

293T cell lysate, Jurkat cell lysate, Hela cell lysate, NIH/3T3 cell lysate, Mouse heart tissue lysate, Rat testis tissue lysate, Rat heart tissue lysate, HeLa, NIH/3T3, human lung carcinoma tissue, human striated muscle tissue, mouse heart tissue, rat large intestine tissue.

Molecular wt :

Predicted band size: 100 kDa

Subcellular location :

Cytosol, extracellular exosome, extracellular region, nucleoplasm, nucleus, proteasome storage granule.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000 ;IF-Cell: 1:100 ;IHC-P: 1:1,000-1:1,500 ;FC: 1:1,000

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA500353_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human lung carcinoma tissue with Rabbit anti-PSMD2 antibody (HA500353) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500353) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA500353_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human striated muscle tissue with Rabbit anti-PSMD2 antibody (HA500353) at 1/1,500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500353) at 1/1,500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/HA500353_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit anti-PSMD2 antibody (HA500353) at 1/1,500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500353) at 1/1,500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/HA500353_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded rat large intestine tissue with Rabbit anti-PSMD2 antibody (HA500353) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500353) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/HA500353_8.jpg

Pic legend8 :

Flow cytometric analysis of HeLa cells labeling PSMD2. Cells were fixed and permeabilized. Then stained with the primary antibody (HA500353, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img9 :

https://storage.huabio.cn/huabio/productImg/HA500353_9.jpg

Pic legend9 :

Flow cytometric analysis of NIH/3T3 cells labeling PSMD2. Cells were fixed and permeabilized. Then stained with the primary antibody (HA500353, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
