PDE6 alpha | HUABIO HA500264 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PDE6 alpha

catalog :

HA500264

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

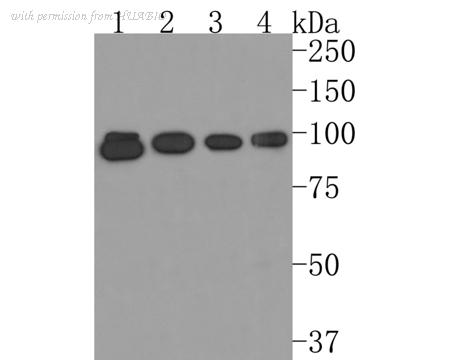

Western blot analysis of PDE6 alpha on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA500264, 1/500) was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature. Positive control: Lane 1: Rat eyeballs tissue lysate Lane 2: K562 cell lysate Lane 3: 293T cell lysate Lane 4: Rat kidney tissue lysate Predicted band size: 100 kDa Observed band size: 98 kDa

image 2 :

ICC staining of PDE6 alpha in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (HA500264, 1/200) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

image 3 :

Immunohistochemical analysis of paraffin-embedded rat eyeball tissue using anti-PDE6 alpha antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500264, 1/600) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA500264

Target name :

PDE6 alpha

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human PDE6 alpha aa 201-400.

Uniprot id :

P16499>SwissProt: P16499 Human;SwissProt: P27664 Mouse;Entrez Gene: 307401 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

PBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

Rat eyeballs tissue lysate, K562 cell lysate, 293T cell lysate, rat kidney tissue lysate, Hela, rat eyeball tissue, mouse eyeball tissue.

Molecular wt :

Predicted band size: 100 kDa

Subcellular location :

Cell membrane

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500 ;IF-Cell: 1:200 ;IHC-P: 1:600

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA500264_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded mouse eyeball tissue using anti-PDE6 alpha antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500264, 1/600) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
