Plakophilin 3 | HUABIO HA500034 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Plakophilin 3

catalog :

HA500034

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

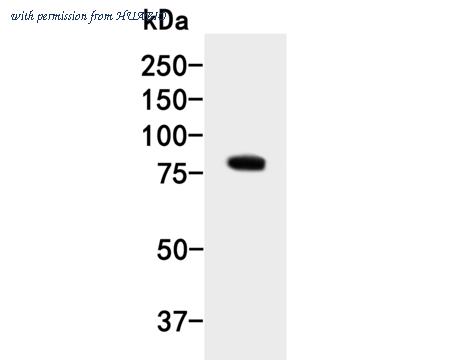

Western blot analysis of Plakophilin 3 on SKBR-3 cell lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (HA500034, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

image 2 :

ICC staining of Plakophilin 3 in SW620 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (HA500034, 1/200) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

image 3 :

Immunohistochemical analysis of paraffin-embedded rat tongue tissue using anti-Plakophilin 3 antibody. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500034, 1/1,500) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

HA500034

Target name :

Plakophilin 3

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within C-terminal human Plakophilin 3.

Uniprot id :

Q9Y446>SwissProt: Q9Y446 Human;SwissProt: Q9QY23 Mouse

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*TBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

SKBR-3 cell lysates, SW620, rat tongue tissue, human skin tissue, human breast carcinoma tissue.

Molecular wt :

Predicted band size: 87 kDa.

Subcellular location :

Cell junction, Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500-1:1,000;IF-Cell: 1:50-1:200;IHC-P: 1:500-1:2,000

Pic img4 :

https://storage.huabio.cn/huabio/productImg/HA500034_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human skin tissue using anti-Plakophilin 3 antibody. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500034, 1/1,500) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/HA500034_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-Plakophilin 3 antibody. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA500034, 1/1,500) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

more info or order :

HUABIO product webpage
