Ndufs4 | HUABIO ET7109-37 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Ndufs4

catalog :

ET7109-37

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JE44-69

reactivity :

human, mouse, rat, zebrafish

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

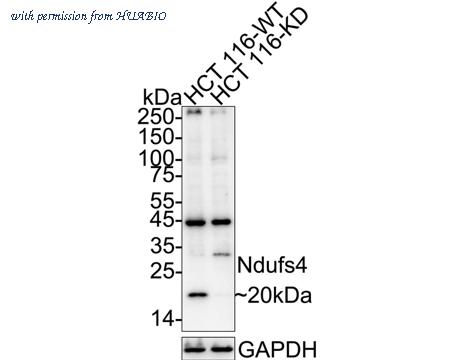

Western blot analysis of Ndufs4 on different lysates with Rabbit anti-Ndufs4 antibody (ET7109-37) at 1/2,000 dilution. Lane 1: HCT 116-si NT cell lysate Lane 2: HCT 116-si Ndufs4 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 20 kDa Observed band size: 20 kDa Exposure time: 1 minute; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7109-37) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

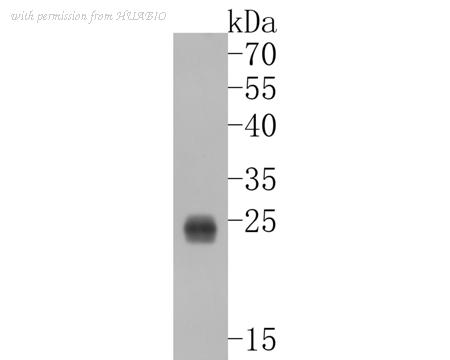

Western blot analysis of Ndufs4 on zebrafish tissue lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET7109-37, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Ndufs4 antibody (ET7109-37) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7109-37) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ET7109-37

Target name :

Ndufs4

Species reactivity :

Human,Mouse,Rat,Zebrafish

Applications :

WB,IP,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human Ndufs4 aa 126-175 / 175.

Uniprot id :

O43181>SwissProt: O43181 Human;SwissProt: Q9CXZ1 Mouse;SwissProt: Q5XIF3 Rat

Host :

Rabbit

Clone number :

JE44-69

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HCT 116 cell lysates, zebrafish tissue lysates, human kidney tissue, mouse kidney tissue, rat kidney tissue, 293T.

Molecular wt :

Predicted band size: 20 kDa

Subcellular location :

Mitochondrion

Concentration :

1 mg/ml.

Recommended dilutions :

WB: 1:500-1:1,000 ;IP: 1:10-1:50 ;IHC-P: 1:200-1:1,000 ;FC: 1:50-1:100

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET7109-37_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-Ndufs4 antibody (ET7109-37) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7109-37) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET7109-37_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded rat kidney tissue using anti-Ndufs4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ET7109-37) at 1/100 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chrogen. Counter stained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET7109-37_6.jpg

Pic legend6 :

Flow cytometric analysis of Ndufs4 was done on 293T cells. The cells were fixed, permeabilized and stained with Ndufs4 antibody at 1/100 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). After incubation of the primary antibody on room temperature for an hour, the cells was stained with a Alexa Fluor™ 488-conjugated goat anti-rabbit IgG Secondary antibody at 1/500 dilution for 30 minutes.
