IQGAP1 | HUABIO ET7108-79 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

IQGAP1

catalog :

ET7108-79

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JG38-74

reactivity :

human, mouse

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

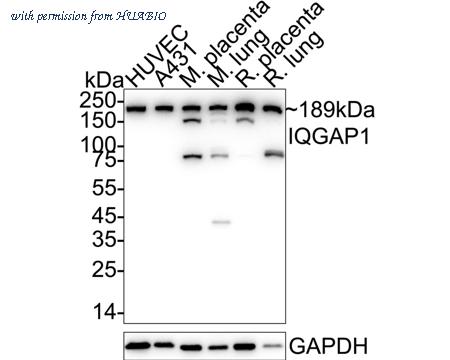

Western blot analysis of IQGAP1 on different lysates with Rabbit anti-IQGAP1 antibody (ET7108-79) at 1/2,000 dilution. Lane 1: HUVEC cell lysate Lane 2: A431 cell lysate Lane 3: Mouse placenta tissue lysate Lane 4: Mouse lung tissue lysate Lane 5: Rat placenta tissue lysate Lane 6: Rat lung tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 189 kDa Observed band size: 189 kDa Exposure time: 4 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7108-79) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Western blot analysis of IQGAP1 on different lysates with Rabbit anti-IQGAP1 antibody (ET7108-79) at 1/5,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-IQGAP1 KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 189 kDa Observed band size: 189 kDa Exposure time: 60 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7108-79) at 1/5,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

ICC staining of IQGAP1 in A431 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ET7108-79, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

product information

SKU :

ET7108-79

Target name :

IQGAP1

Species reactivity :

Human,Mouse

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human IQGAP1 aa 10-100 / 1657.

Uniprot id :

P46940>SwissProt: P46940 Human;SwissProt: Q9JKF1 Mouse

Host :

Rabbit

Clone number :

JG38-74

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HUVEC cell lysate, A431 cell lysate, Mouse placenta tissue lysate, Mouse lung tissue lysate, Rat placenta tissue lysate, Rat lung tissue lysate, A431, Hela, SiHa, human lung tissue, mouse lung tissue, rat lung tissue.

Molecular wt :

Predicted band size: 189 kDa

Subcellular location :

Cell membrane. Cytoplasm. Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000-1:5,000 ;IF-Cell: 1:50-1:200 ;IF-Tissue: 1:50-1:200 ;IHC-P: 1:200-1:1,000 ;FC: 1:50-1:100

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET7108-79_4.jpg

Pic legend4 :

ICC staining of IQGAP1 in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ET7108-79, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET7108-79_5.jpg

Pic legend5 :

ICC staining of IQGAP1 in SiHa cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ET7108-79, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET7108-79_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-IQGAP1 antibody (ET7108-79) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7108-79) at 1/1,000dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET7108-79_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-IQGAP1 antibody (ET7108-79) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7108-79) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET7108-79_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded rat lung tissue with Rabbit anti-IQGAP1 antibody (ET7108-79) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7108-79) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET7108-79_9.jpg

Pic legend9 :

Flow cytometric analysis of IQGAP1 was done on Hela cells. The cells were fixed, permeabilized and stained with the primary antibody (ET7108-79, 1/50) (purple). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; yellow).
