GEF H1 | HUABIO ET7108-34 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

GEF H1

catalog :

ET7108-34

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JG36-46

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

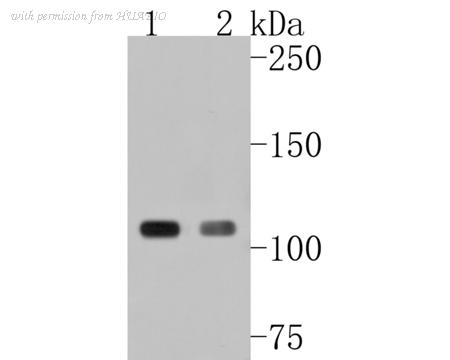

Western blot analysis of GEF H1 on different lysates with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/500 dilution. Lane 1: 293T cell lysate Lane 2: A431 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 1122 kDa Observed band size: 112 kDa Exposure time: 2 minutes; 6% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7108-34) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunocytochemistry analysis of SH-SY5Y cells labeling GEF H1 with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/50 dilution in 2% negative goat serum overnight at 4 ℃.Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.

image 3 :

Immunocytochemistry analysis of HUVEC cells labeling GEF H1 with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/50 dilution in 2% negative goat serum overnight at 4 ℃.Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.

product information

SKU :

ET7108-34

Target name :

GEF H1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human GEF H1 aa 937-986 / 986.

Uniprot id :

Q92974>SwissProt: Q92974 Human;SwissProt: Q60875 Mouse;SwissProt: Q5FVC2 Rat

Host :

Rabbit

Clone number :

JG36-46

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

293T cell lysate, A431 cell lysate, SH-SY5Y, HUVEC, human tonsil, mouse testis, rat brain tissue.

Molecular wt :

112 kDa

Subcellular location :

Ruffle membrane, cytoskeleton, spindle, Golgi apparatus, Cytoplasm, tight junction, Cytoplasmic vesicle.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500-1:2,000 ;IF-Cell: 1:50-1:200 ;IHC-P: 1:50-1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET7108-34_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human tonsil with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7108-34) at 1/50 dilution for 0.5 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET7108-34_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse testis with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7108-34) at 1/50 dilution for 0.5 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET7108-34_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-GEF H1 antibody (ET7108-34) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7108-34) at 1/50 dilution for 0.5 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

more info or order :

HUABIO product webpage
