CXCR5 | HUABIO ET7107-74-50UL product information

product summary

company name :

HUABIO

product type :

antibody

product name :

CXCR5

catalog :

ET7107-74-50UL

quantity :

50μl

price :

205.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JB11-40

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

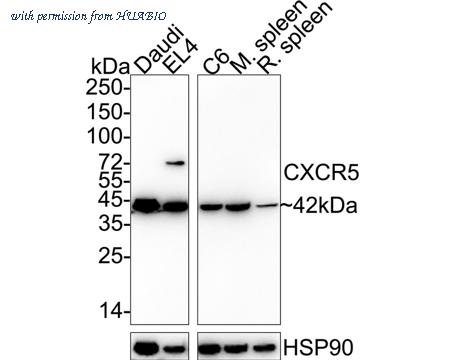

Western blot analysis of CXCR5 on different lysates with Rabbit anti-CXCR5 antibody (ET7107-74) at 1/2,000 dilution. Lane 1: Daudi cell lysate Lane 2: EL4 cell lysate Lane 3: Neuro-2a cell lysate Lane 4: C6 cell lysate Lane 5: Mouse spleen tissue lysate Lane 6: Rat spleen tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 42 kDa Observed band size: 42 kDa Exposure time: 1 minute 34 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7107-74) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:50,000 dilution was used for 1 hour at room temperature.

image 2 :

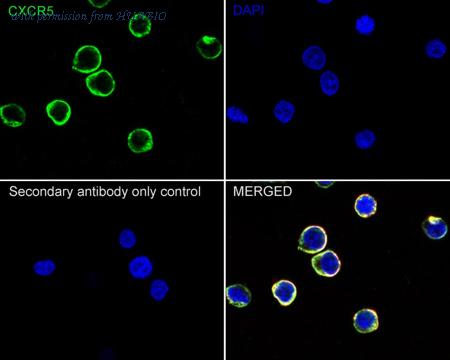

Immunocytochemistry analysis of Daudi cells labeling CXCR5 with Rabbit anti-CXCR5 antibody (ET7107-74) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CXCR5 antibody (ET7107-74) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

image 3 :

Immunocytochemistry analysis of Neuro-2a cells labeling CXCR5 with Rabbit anti-CXCR5 antibody (ET7107-74) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CXCR5 antibody (ET7107-74) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

ET7107-74-50UL

Target name :

CXCR5

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,FC,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within C-terminal human CXCR5.

Uniprot id :

P32302>SwissProt: P32302 Human;SwissProt: Q04683 Mouse;SwissProt: P34997 Rat

Host :

Rabbit

Clone number :

JB11-40

Isotype :

IgG

Size :

50μl

List Price :

205.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

Daudi cell lysate, EL4 cell lysate, Neuro-2a cell lysate, C6 cell lysate, mouse spleen tissue lysate, rat spleen tissue lysate, Daudi, Neuro-2a, rat kidney tissue, human tonsil tissue, mouse heart tissue

Molecular wt :

Predicted band size: 42 kDa

Subcellular location :

Cell membrane

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000-1:5,000 ;IHC-P: 1:50-1:200 ;FC: 1:50-1:100 ;IF-Cell: 1:250

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET7107-74_4.jpg

Pic legend4 :

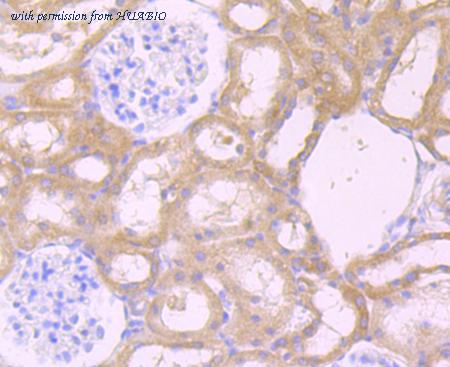

Immunohistochemical analysis of paraffin-embedded rat kidney tissue using anti-CXCR5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-74, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET7107-74_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse heart tissue using anti-CXCR5 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-74, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET7107-74_6.jpg

Pic legend6 :

Flow cytometric analysis of CXCR5 was done on Daudi cells. The cells were fixed, permeabilized and stained with the primary antibody (ET7107-74, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
