CD3G | HUABIO ET7107-55 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

CD3G

catalog :

ET7107-55

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JB38-29

reactivity :

human, mouse

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

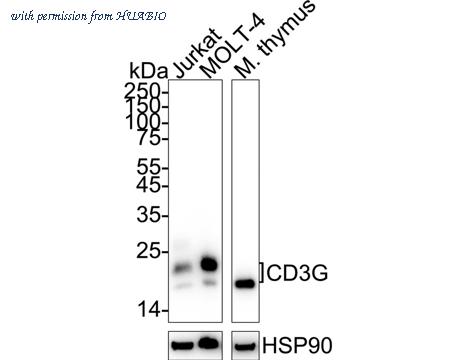

Western blot analysis of CD3G on different lysates with Rabbit anti-CD3G antibody (ET7107-55) at 1/2,000 dilution. Lane 1: Jurkat cell lysate Lane 2: MOLT-4 cell lysate Lane 3: Mouse thymus tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 20 kDa Observed band size: 17/20 kDa Exposure time: 6 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7107-55) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-CD3G antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-CD3G antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ET7107-55

Target name :

CD3G

Species reactivity :

Human,Mouse

Applications :

WB,IHC-P,FC,IP,IF-Cell,IF-Tissue

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human CD3G aa 133-182 / 182.

Uniprot id :

P09693>SwissProt: P09693 Human;SwissProt: P11942 Mouse

Host :

Rabbit

Clone number :

JB38-29

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

Jurkat cell lysate, MOLT-4 cell lysate, mouse thymus tissue lysate, human tonsil tissue, human spleen tissue, mouse spleen tissue, mouse thymus tissue, Jurkat.

Molecular wt :

Predicted band size: 20 kDa

Subcellular location :

Cell membrane

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IHC-P: 1:50-1:800 ;FC: 1:1,000 ;IP: Use at an assay dependent concentration. ;IF-Cell: 1:50 ;IF-Tissue: 1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET7107-55_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-CD3G antibody (ET7107-55) at 1/800 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET7107-55_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse thymus tissue with Rabbit anti-CD3G antibody (ET7107-55) at 1/800 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET7107-55_6.jpg

Pic legend6 :

Immunocytochemistry analysis of Jurkat cells labeling CD3G with Rabbit anti-CD3G antibody (ET7107-55) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CD3G antibody (ET7107-55) at 1/50 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET7107-55_7.jpg

Pic legend7 :

Flow cytometric analysis of Jurkat cells labeling CD3G. Cells were fixed and permeabilized. Then stained with the primary antibody (ET7107-55, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET7107-55_8.jpg

Pic legend8 :

Application: IF-Tissue Species: Mouse Site: Spleen Sample: Paraffin-embedded section Antibody concentration: 1/200
