PFKM | HUABIO ET7106-97 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PFKM

catalog :

ET7106-97

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JU53-31

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

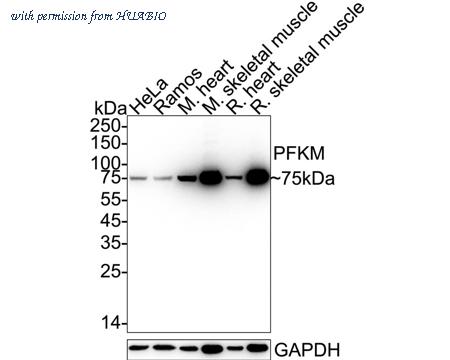

Western blot analysis of PFKM on different lysates with Rabbit anti-PFKM antibody (ET7106-97) at 1/1,000 dilution. Lane 1: HeLa cell lysate Lane 2: Ramos cell lysate Lane 3: Mouse heart tissue lysate Lane 4: Mouse skeletal muscle tissue lysate Lane 5: Rat heart tissue lysate Lane 6: Rat skeletal muscle tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 85 kDa Observed band size: 75 kDa Exposure time: 10 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7106-97) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

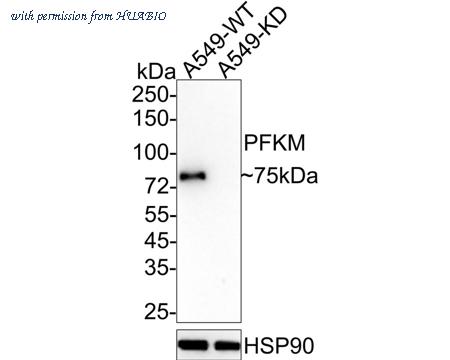

Western blot analysis of PFKM on different lysates with Rabbit anti-PFKM antibody (ET7106-97) at 1/1,000 dilution. Lane 1: A549-WT cell lysate Lane 2: A549-KD PFKM cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 85 kDa Observed band size: 75 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7106-97) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

ICC staining of PFKM in LOVO cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET7106-97, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

product information

SKU :

ET7106-97

Target name :

PFKM

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human PFKM aa 107-156 / 780.

Uniprot id :

P08237>SwissProt: P08237 Human;SwissProt: P47857 Mouse;SwissProt: P47858 Rat

Host :

Rabbit

Clone number :

JU53-31

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, Ramos cell lysate, mouse heart tissue lysate, mouse skeletal muscle tissue lysate, rat heart tissue lysate, rat skeletal muscle tissue lysate, A549 cell lysate, LOVO, PC-3M, SH-SY5Y, rat brain tissue, human liver carcinoma tissue, mouse skeletal muscle tissue, human thyroid tissue, human kidney tissue.

Molecular wt :

Predicted band size: 85 kDa

Subcellular location :

Cytoplasm

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000-1:2,000 ;IF-Cell: 1:50-1:200 ;IHC-P: 1:50-1:200 ;FC: 1:50-1:100

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_4.jpg

Pic legend4 :

ICC staining of PFKM in PC-3M cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET7106-97, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_5.jpg

Pic legend5 :

ICC staining of PFKM in SH-SY5Y cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET7106-97, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue using anti-PFKM antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7106-97, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human liver carcinoma tissue using anti-PFKM antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7106-97, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue using anti-PFKM antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7106-97, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded human thyroid tissue using anti-PFKM antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7106-97, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-PFKM antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7106-97, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img11 :

https://storage.huabio.cn/huabio/productImg/ET7106-97_11.jpg

Pic legend11 :

Flow cytometric analysis of PFKM was done on SH-SY5Y cells. The cells were fixed, permeabilized and stained with the primary antibody (ET7106-97, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
