alpha Actinin 4 | HUABIO ET1706-05 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

alpha Actinin 4

catalog :

ET1706-05

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JU20-23

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

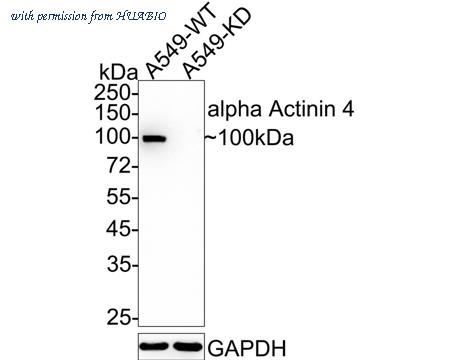

Western blot analysis of alpha Actinin 4 on different lysates with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/2,000 dilution. Lane 1: A549-si NT cell lysate Lane 2: A549-si alpha Actinin 4 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 105 kDa Observed band size: 100 kDa Exposure time: 30 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1706-05) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

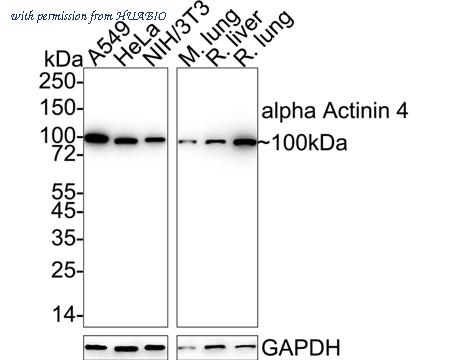

Western blot analysis of alpha Actinin 4 on different lysates with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/2,000 dilution. Lane 1: A549 cell lysate Lane 2: HeLa cell lysate Lane 3: NIH/3T3 cell lysate Lane 4: Mouse lung tissue lysate Lane 5: Rat liver tissue lysate Lane 6: Rat lung tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 105 kDa Observed band size: 100 kDa Exposure time: 20 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1706-05) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

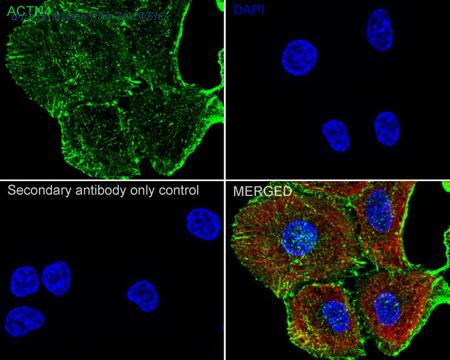

Immunocytochemistry analysis of A549 cells labeling alpha Actinin 4 with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

ET1706-05

Target name :

alpha Actinin 4

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IP,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human alpha Actinin 4 aa 1-50 / 911.

Uniprot id :

O43707>SwissProt: O43707 Human;SwissProt: P57780 Mouse;SwissProt: Q9QXQ0 Rat

Host :

Rabbit

Clone number :

JU20-23

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

A549 cell lysate, HeLa cell lysate, NIH/3T3 cell lysate, Mouse lung tissue lysate, Rat liver tissue lysate, Rat lung tissue lysate, A549, NIH/3T3, mouse liver tissue, rat liver tissue.

Molecular wt :

Predicted band size: 105 kDa

Subcellular location :

Cell junction. Cytoplasm. Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IF-Cell: 1:100-1:500 ;IHC-P: 1:200 ;FC: 1:1,000 ;IP: 1-2μg/sample

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1706-05_4.jpg

Pic legend4 :

Immunocytochemistry analysis of NIH/3T3 cells labeling alpha Actinin 4 with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1706-05_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1706-05) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1706-05_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-alpha Actinin 4 antibody (ET1706-05) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1706-05) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1706-05_7.jpg

Pic legend7 :

Flow cytometric analysis of A549 cells labeling alpha Actinin 4. Cells were fixed and permeabilized. Then stained with the primary antibody (ET1706-05, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1706-05_8.jpg

Pic legend8 :

Flow cytometric analysis of NIH/3T3 cells labeling alpha Actinin 4. Cells were fixed and permeabilized. Then stained with the primary antibody (ET1706-05, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET1706-05_9.jpg

Pic legend9 :

alpha Actinin 4 was immunoprecipitated from 0.2 mg A549 cell lysate with ET1706-05 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using ET1706-05 at 1/1,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: A549 cell lysate (input) Lane 2: ET1706-05 IP in A549 cell lysate Lane 3: Rabbit IgG instead of ET1706-05 in A549 cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 3 seconds; ECL: K1801
