CaMKII delta | HUABIO ET1704-37 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

CaMKII delta

catalog :

ET1704-37

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JA30-07

reactivity :

human, mouse, rat, zebrafish

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

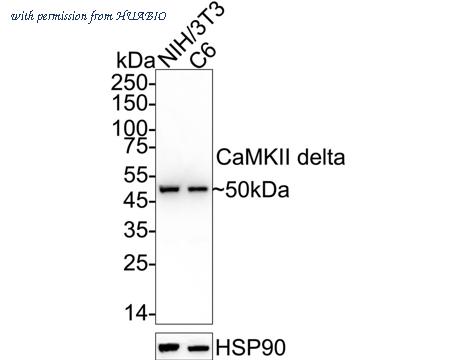

Western blot analysis of CaMKII delta on different lysates with Rabbit anti-CaMKII delta antibody (ET1704-37) at 1/1,000 dilution. Lane 1: NIH/3T3 cell lysate Lane 2: C6 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 56 kDa Observed band size: 50 kDa Exposure time: 25 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1704-37) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

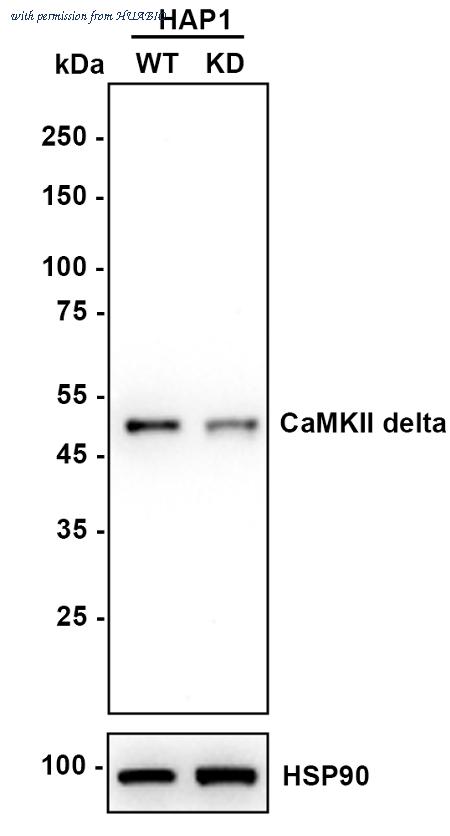

Western blot analysis of CaMKII delta on different lysates with Rabbit anti-CaMKII delta antibody (ET1704-37) at 1/2,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-CaMKII delta KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 56 kDa Observed band size: 50 kDa Exposure time: 100 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1704-37) at 1/2,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit anti-CaMKII delta antibody (ET1704-37) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-37) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ET1704-37

Target name :

CaMKII delta

Species reactivity :

Human,Mouse,Rat,Zebrafish

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human CaMKII delta aa 22-71 / 499.

Uniprot id :

Q13557>SwissProt: Q13557 Human;SwissProt: Q6PHZ2 Mouse;SwissProt: P15791 Rat

Host :

Rabbit

Clone number :

JA30-07

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

NIH/3T3 cell lysate, C6 cell lysate, HAP1 cell lysate, mouse heart tissue, zebrafish tissue, rat brain tissue, mouse skeletal muscle tissue.

Molecular wt :

Predicted band size: 56 kDa

Subcellular location :

Sarcolemma. Sarcoplasmic reticulum membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000-1:2,000 ;IHC-P: 1:50-1:200

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1704-37_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded zebrafish tissue using anti-CaMKII delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-37, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1704-37_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue using anti-CaMKII delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-37, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1704-37_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue using anti-CaMKII delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1704-37, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
