RAGE | HUABIO ET1702-27 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

RAGE

catalog :

ET1702-27

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JF0975

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

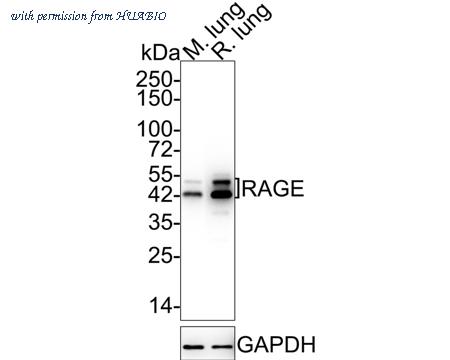

Western blot analysis of RAGE on different lysates with Rabbit anti-RAGE antibody (ET1702-27) at 1/5,000 dilution. Lane 1: Mouse lung tissue lysate Lane 2: Rat lung tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 43 kDa Observed band size: 43/50 kDa Exposure time: 24 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1702-27) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-RAGE antibody (ET1702-27) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-27) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded human liver tissue (negative) with Rabbit anti-RAGE antibody (ET1702-27) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-27) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ET1702-27

Target name :

RAGE

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IF-Tissue,mIHC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human RAGE aa 350-390.

Uniprot id :

Q15109>SwissProt: Q15109 Human;SwissProt: Q62151 Mouse;SwissProt: Q63495 Rat

Host :

Rabbit

Clone number :

JF0975

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

Mouse lung tissue lysate, Rat lung tissue lysate, human lung tissue, mouse lung tissue, rat lung tissue, mouse lung tissue (perfusion), rat lung tissue (perfusion).

Molecular wt :

Predicted band size: 43 kDa

Subcellular location :

Cell membrane, Secreted.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000-1:5,000 ;IHC-P: 1:1,000 ;IF-Tissue: 1:100 ;mIHC: 1:3,000

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1702-27_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-RAGE antibody (ET1702-27) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-27) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1702-27_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue (negative) with Rabbit anti-RAGE antibody (ET1702-27) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-27) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1702-27_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat lung tissue with Rabbit anti-RAGE antibody (ET1702-27) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-27) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1702-27_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded rat liver tissue (negative) with Rabbit anti-RAGE antibody (ET1702-27) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-27) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1702-27_8.jpg

Pic legend8 :

Immunofluorescence analysis of paraffin-embedded mouse lung tissue (perfusion) labeling RAGE with Rabbit anti-RAGE antibody (ET1702-27) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ET1702-27, green) at 1/100 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET1702-27_9.jpg

Pic legend9 :

Immunofluorescence analysis of paraffin-embedded rat lung tissue (perfusion) labeling RAGE with Rabbit anti-RAGE antibody (ET1702-27) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ET1702-27, green) at 1/100 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Pic img10 :

https://storage.huabio.cn/huabio/productImg/ET1702-27_10.jpg

Pic legend10 :

Fluorescence multiplex immunohistochemical analysis of mouse lung (Formalin/PFA-fixed paraffin-embedded sections). Panel A: the merged image of anti-TTF1 (HA720067, Red), anti-RAGE (ET1702-27, Green), anti-aSMA (ET1607-53, Cyan) and anti-Ki67 (HA721115, Yellow) on mouse lung. HRP Conjugated UltraPolymer Goat Polyclonal Antibody HA1119/HA1120 was used as a secondary antibody. The immunostaining was performed with the Sequential Immuno-staining Kit (IRISKit™MH010101, www.luminiris.cn). The section was incubated in four rounds of staining: in the order of HA720067 (1/4,000 dilution), ET1702-27 (1/3,000 dilution), ET1607-53 (1/10,000 dilution) and HA721115 (1/3,000 dilution) for 20 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins at 95℃. DAPI (blue) was used as a nuclear counter stain. Image acquisition was performed with Olympus VS200 Slide Scanner.
