PKC delta | HUABIO ET1701-85 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PKC delta

catalog :

ET1701-85

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JJ093-02

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

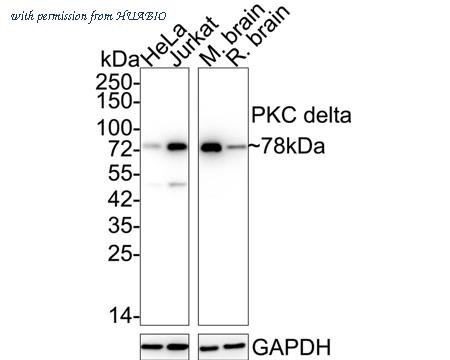

Western blot analysis of PKC delta on different lysates with Rabbit anti-PKC delta antibody (ET1701-85) at 1/5,000 dilution. Lane 1: HeLa cell lysate (15 µg/Lane) Lane 2: Jurkat cell lysate (15 µg/Lane) Lane 3: Mouse brain tissue lysate (20 µg/Lane) Lane 4: Rat brain tissue lysate (20 µg/Lane) Predicted band size: 78 kDa Observed band size: 78 kDa Exposure time: 1 minute 40 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1701-85) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunocytochemistry analysis of RH-35 cells labeling PKC delta with Rabbit anti-PKC delta antibody (ET1701-85) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-PKC delta antibody (ET1701-85) at 1/50 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

image 3 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-PKC delta antibody (ET1701-85) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ET1701-85

Target name :

PKC delta

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within mouse PKC delta aa 525-671 / 676.

Uniprot id :

Q05655>SwissProt: Q05655 Human;SwissProt: P28867 Mouse;SwissProt: P09215 Rat

Host :

Rabbit

Clone number :

JJ093-02

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, Jurkat cell lysate, Mouse brain tissue lysate, Rat brain tissue lysate, RH-35, mouse brain tissue, rat brain tissue, human tonsil tissue, human liver tissue, human spleen tissue, human breast carcinoma tissue, mouse testis tissue, mouse liver tissue.

Molecular wt :

Predicted band size: 78 kDa

Subcellular location :

Cytoplasm, Nucleus, Cell membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000-1:5,000 ;IF-Cell: 1:50-1:200 ;IF-Tissue: 1:50-1:200 ;IHC-P: 1:50-1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1701-85_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-PKC delta antibody (ET1701-85) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1701-85_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1701-85_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human liver tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1701-85_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1701-85_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET1701-85_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded mouse testis tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/ET1701-85_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1701-85, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
