ATF7 | HUABIO ET1701-31 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

ATF7

catalog :

ET1701-31

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

JJ2-072

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

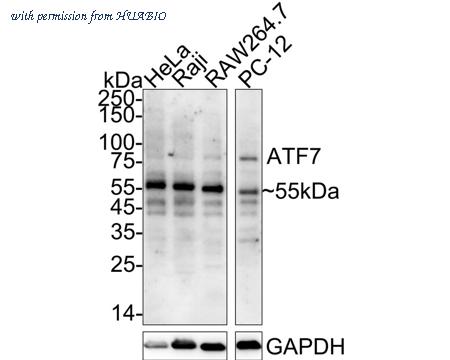

Western blot analysis of ATF7 on different lysates with Rabbit anti-ATF7 antibody (ET1701-31) at 1/1,000 dilution. Lane 1: HeLa cell lysate Lane 2: Raji cell lysate Lane 3: RAW264.7 cell lysate Lane 4: PC-12 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 52 kDa Observed band size: 55 kDa Exposure time: 1 minute 59 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1701-31) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

ICC staining ATF7 in HepG2 cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

image 3 :

ICC staining ATF7 in Hela cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

product information

SKU :

ET1701-31

Target name :

ATF7

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human ATF7 aa 1-50 / 483.

Uniprot id :

P17544>SwissProt: P17544 Human;SwissProt: Q8R0S1 Mouse;Unigene: 219706 Rat

Host :

Rabbit

Clone number :

JJ2-072

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, Raji cell lysate, RAW264.7 cell lysate, PC-12 cell lysate, HepG2, Hela, mouse lung tissue, mouse skeletal muscle tissue, mouse heart tissue.

Molecular wt :

Predicted band size: 52 kDa

Subcellular location :

Nucleus, Cytoplasm.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000 ;IF-Cell: 1:50-1:200 ;IF-Tissue: 1:50-1:200 ;IHC-P: 1:50-1:200 ;FC: 1:50-1:100

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1701-31_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded mouse lung tissue using anti-ATF7 antibody. Counter stained with hematoxylin.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1701-31_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue using anti-ATF7 antibody. Counter stained with hematoxylin.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1701-31_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse heart tissue using anti-ATF7 antibody. Counter stained with hematoxylin.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1701-31_7.jpg

Pic legend7 :

Flow cytometric analysis of Jurkat cells with ATF7 antibody at 1/50 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). Alexa Fluor 488-conjugated goat anti rabbit IgG was used as the secondary antibody
