Collagen VI | HUABIO ET1612-91-50UL product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Collagen VI

catalog :

ET1612-91-50UL

quantity :

50μl

price :

205.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SD83-03

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

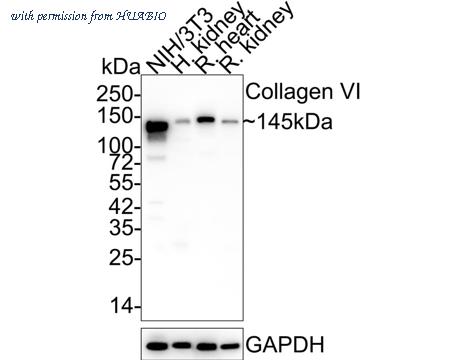

Western blot analysis of Collagen VI on different lysates with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/2,000 dilution. Lane 1: NIH/3T3 cell lysate (15 µg/Lane) Lane 2: Human kidney tissue lysate (20 µg/Lane) Lane 3: Rat heart tissue lysate (20 µg/Lane) Lane 4: Rat kidney tissue lysate (20 µg/Lane) Predicted band size: 109 kDa Observed band size: 145 kDa Exposure time: 1 minute 30 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1612-91) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

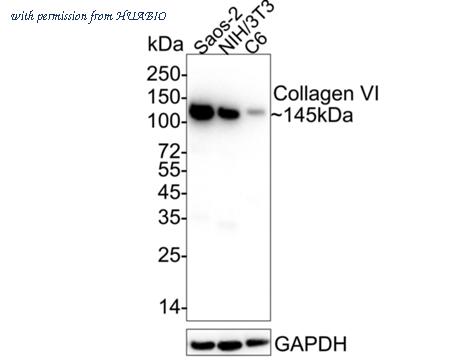

Western blot analysis of Collagen VI on different lysates with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/1,000 dilution. Lane 1: Saos-2 cell lysate Lane 2: NIH/3T3 cell lysate Lane 3: C6 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 145 kDa Observed band size: 145 kDa Exposure time: 6 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1612-91) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

ICC staining of Collagen VI in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1612-91, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

product information

SKU :

ET1612-91-50UL

Target name :

Collagen VI

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human Collagen VI alpha1 aa 17-255 / 1,028.

Uniprot id :

P12109>SwissProt: P12109 Human;SwissProt: P12110 Human;SwissProt: P12111 Human;SwissProt: Q02788 Mouse;SwissProt: Q04857 Mouse;Unigene:232118 Rat

Host :

Rabbit

Clone number :

SD83-03

Isotype :

IgG

Size :

50μl

List Price :

205.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

NIH/3T3 cell lysate, human kidney tissue lysate, rat heart tissue lysate, rat kidney tissue lysate, Hela, A549, HepG2, RH-35, human lung tissue, human liver tissue, mouse colon tissue, human colon tissue, human skin tissue.

Molecular wt :

Predicted band size: 109 kDa

Subcellular location :

Extracellular matrix

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IF-Cell: 1:100-1:500 ;IF-Tissue: 1:100-1:500 ;IHC-P: 1:50-1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_4.jpg

Pic legend4 :

ICC staining of Collagen VI in A549 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1612-91, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_5.jpg

Pic legend5 :

ICC staining of Collagen VI in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1612-91, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_6.jpg

Pic legend6 :

ICC staining of Collagen VI in RH-35 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1612-91, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human lung tissue using anti-Collagen VI antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-91, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-91) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded mouse colon tissue using anti-Collagen VI antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-91, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_10.jpg

Pic legend10 :

Immunohistochemical analysis of paraffin-embedded human colon tissue with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-91) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img11 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_11.jpg

Pic legend11 :

Immunohistochemical analysis of paraffin-embedded human skin tissue with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-91) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img12 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_12.jpg

Pic legend12 :

Immunofluorescence analysis of paraffin-embedded human liver tissue labeling Collagen VI with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ET1612-91, green) at 1/100 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Pic img13 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_13.jpg

Pic legend13 :

Immunofluorescence analysis of paraffin-embedded mouse colon tissue labeling Collagen VI with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ET1612-91, green) at 1/100 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Pic img14 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_14.jpg

Pic legend14 :

Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-91) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img15 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_15.jpg

Pic legend15 :

Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-91) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img16 :

https://storage.huabio.cn/huabio/productImg/ET1612-91_16.jpg

Pic legend16 :

Immunocytochemistry analysis of NIH/3T3 cells labeling Collagen VI with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Collagen VI antibody (ET1612-91) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
